Kit CCS11

Emergency 11 outputs

Article number: 25968

11 outputs

CAN Control Panels for service and emergency vehicles

Technical characteristics for the power module

2 outputs of 15A
9 outputs of 3A
1 permanent output of 6A
Possibility of ground input ( depending on the program)
Total Maximum Power consumption:30A
Casing in ABS
Protection index: IP54-IK08
Automotive communication protocol : CAN
Power supply: 10,5 to 30 V

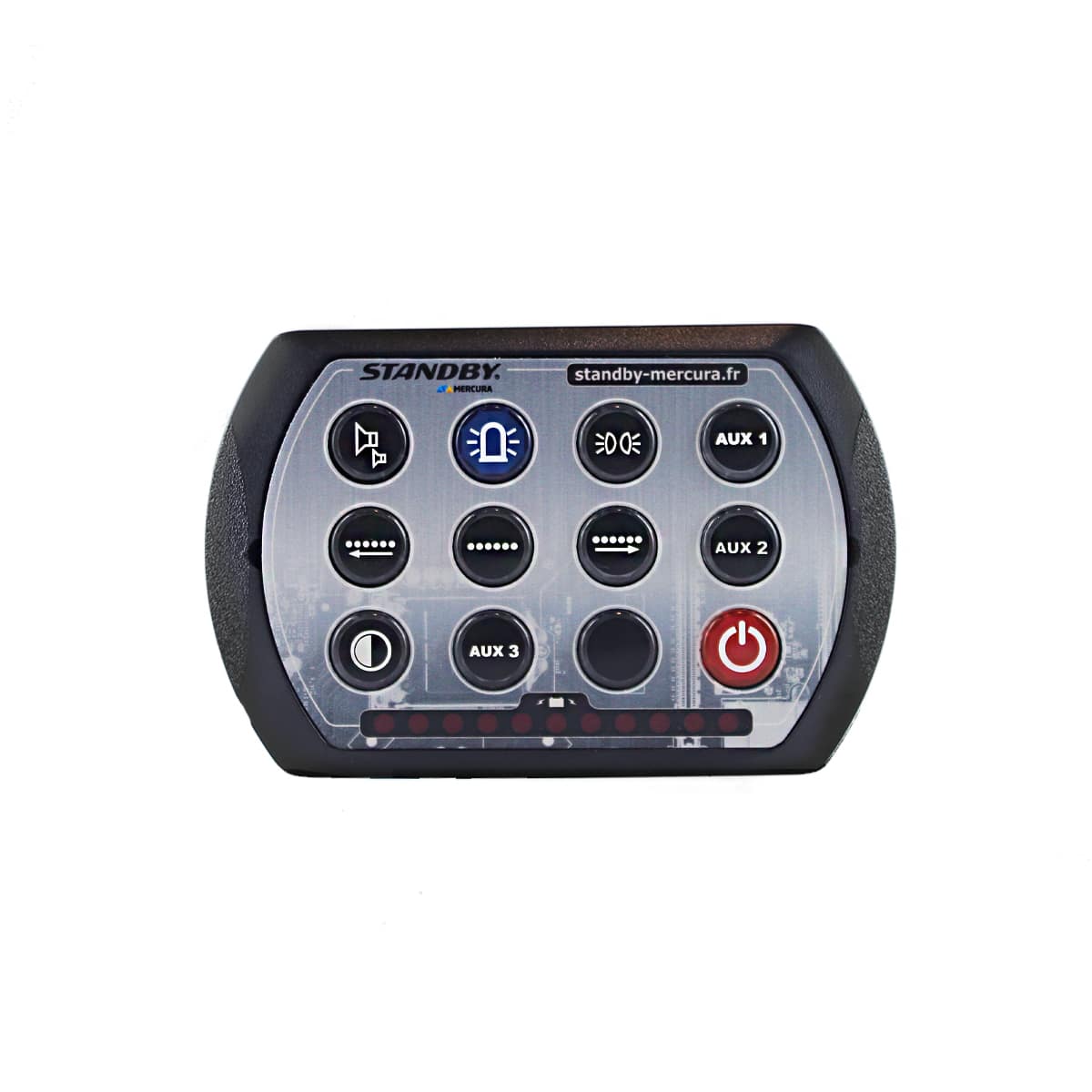

Control panel:

11 control buttons
On/Off button
Low battery alarm
Set of customized buttons adapted to the devices

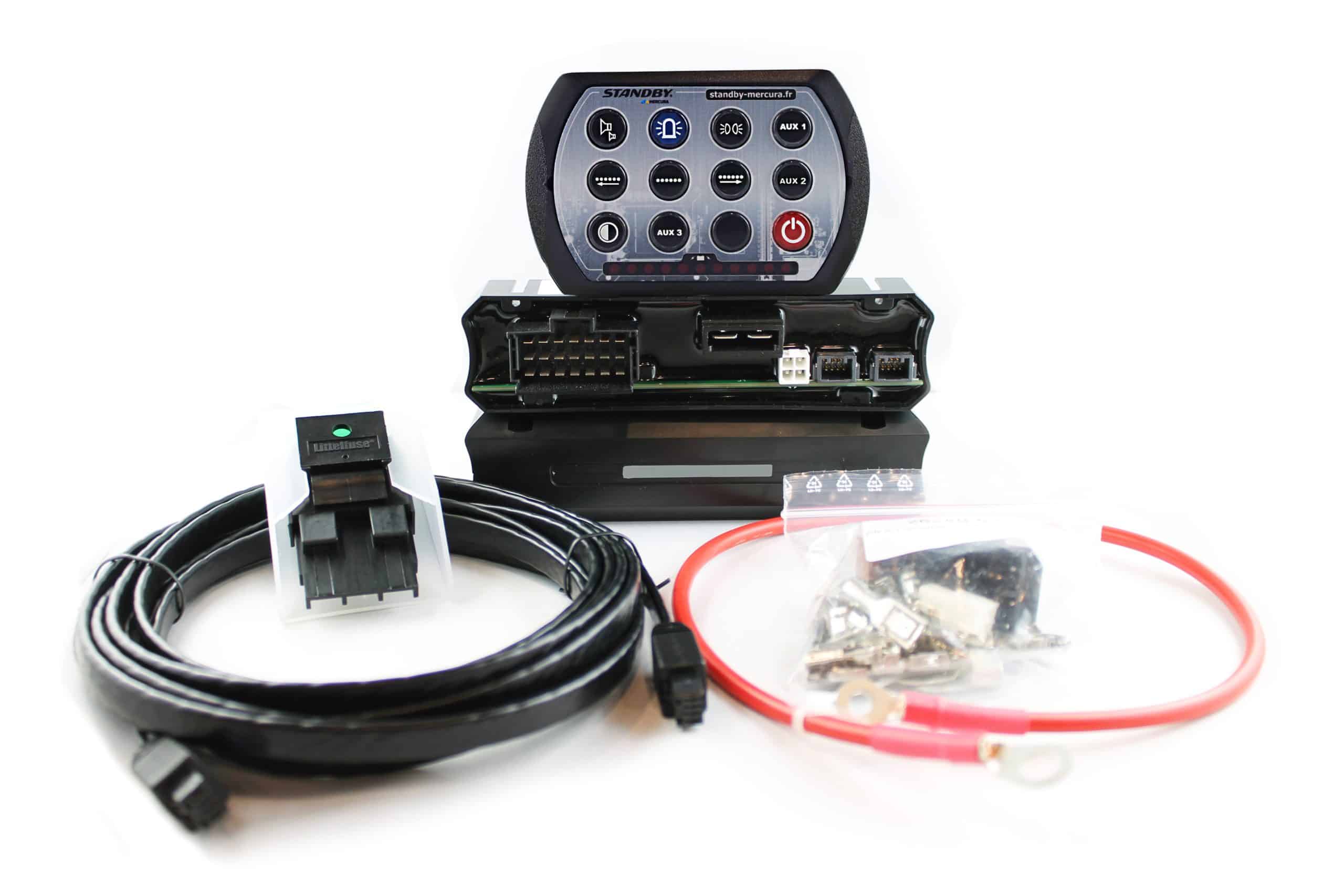

The Kits include

  • The power module
  • The control panel with dashboard fixing system and a set of buttons
  • 4,5 m Bus wiring loom
  • Power supply wiring kit,
  • Connectors, fuses and fuse holders
  • Wiring connecting looms for inputs and outputs
  • An Installation guide and user manual

The system is automatically programmed in the BASIC version without any slave controls : 1 button = 1 output



CCS 11 Pack

Item n°

(12 / 24 V)
Basic * 26123
Emergency 26124
Emergency for VEGA lightbar  29273
Fire brigade 26125
Fire brigade – Civil security 26399



11 outputs

CAN Control Panels for service and emergency vehicles

Technical characteristics for the power module

2 outputs of 15A
9 outputs of 3A
1 permanent output of 6A
Possibility of ground input ( depending on the program)
Total Maximum Power consumption:30A
Casing in ABS
... Read more

11 outputs

CAN Control Panels for service and emergency vehicles

Technical characteristics for the power module

2 outputs of 15A
9 outputs of 3A
1 permanent output of 6A
Possibility of ground input ( depending on the program)
Total Maximum Power consumption:30A
Casing in ABS
Protection index: IP54-IK08
Automotive communication protocol : CAN
Power supply: 10,5 to 30 V

Control panel:

11 control buttons
On/Off button
Low battery alarm
Set of customized buttons adapted to the devices

The Kits include

  • The power module
  • The control panel with dashboard fixing system and a set of buttons
  • 4,5 m Bus wiring loom
  • Power supply wiring kit,
  • Connectors, fuses and fuse holders
  • Wiring connecting looms for inputs and outputs
  • An Installation guide and user manual

The system is automatically programmed in the BASIC version without any slave controls : 1 button = 1 output



CCS 11 Pack

Item n°

(12 / 24 V)
Basic * 26123
Emergency 26124
Emergency for VEGA lightbar  29273
Fire brigade 26125
Fire brigade – Civil security 26399



Collapse

Housing

ABS

Voltage

10-30V

Inputs

Possibility of ground input ( depending on the program)

Outputs

2 outputs of 15A
9 outputs of 3A
1 permanent output of 6A

Enclosure rating

IP54
IK08

Control panels

Read more
Video
Documentation
Pack CCS11 product sheet Pack CCS11 Emergency vehicles Technical Sheet Pack CCS11 Emergency vehicles User Manual
