Emergency Light Arrow – 15 lights

Advantages:

– Aluminium unit: light, strong, corrosion-resistant and recyclable

– Compact sized unit

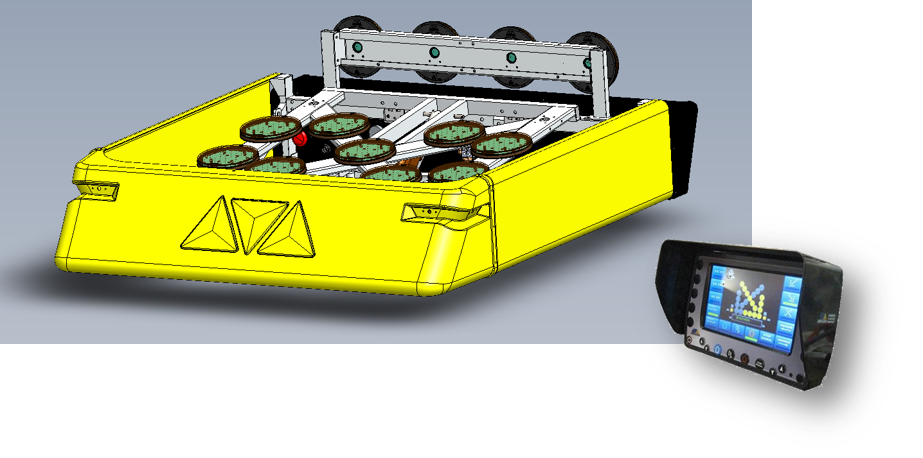

– Graphic screen control

– Light power and Mercura quality

– Safety, very low wind resistance

– Features: left and right arrow, cross and scrolling (with option KR41)

Technical specifications:

• Frame:

– All frames and protective casings are made of aluminium

– The deflectors and casings of the units are painted with automotive paint. The following colours are available as standard: Amber (RAL 2000), White (RAL 9016), Yellow (RAL 1016), Fire brigade red (RAL 3000). Consult us for more colour options.

• Arrow:

– Power supply 12 V or 24 V

– 15 x 200 mm LED lights

– 200 mm lights compliant with NF EN 12352

• Light specifications


          – Light dimensions: 225 x 55 mm – Weight: 400 g

          – 70 high intensity LEDs: amber C1 + C2

          – Certification: EN 12352 – compliant with the standard L8H – Class C1 – F2 – O1- M2

          – 12 V model consumption: 0,6A fixed and 0,3A flashing

          – 24 V model consumption: 0,23A fixed and 0,11A flashing

          – Light power in candelas: 2100Cd (required standard minimum: 1500Cd)

– Operating temperature: -40°C to +85°C

– Raised by an electric jack

– Day/night adjustment of light intensity

Options:

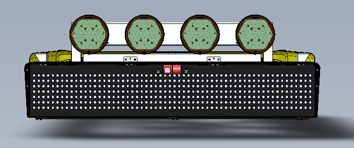

• KR41 pre-warning lightbar (4 x 200 mm LED lights) for scrolling
• 200 mm Variable Message Panel – dimensions: 1558 x 294 x 200 mm
• Amber Gyroled Class 1 or Class 2, rotating or flashing – R65 approved
