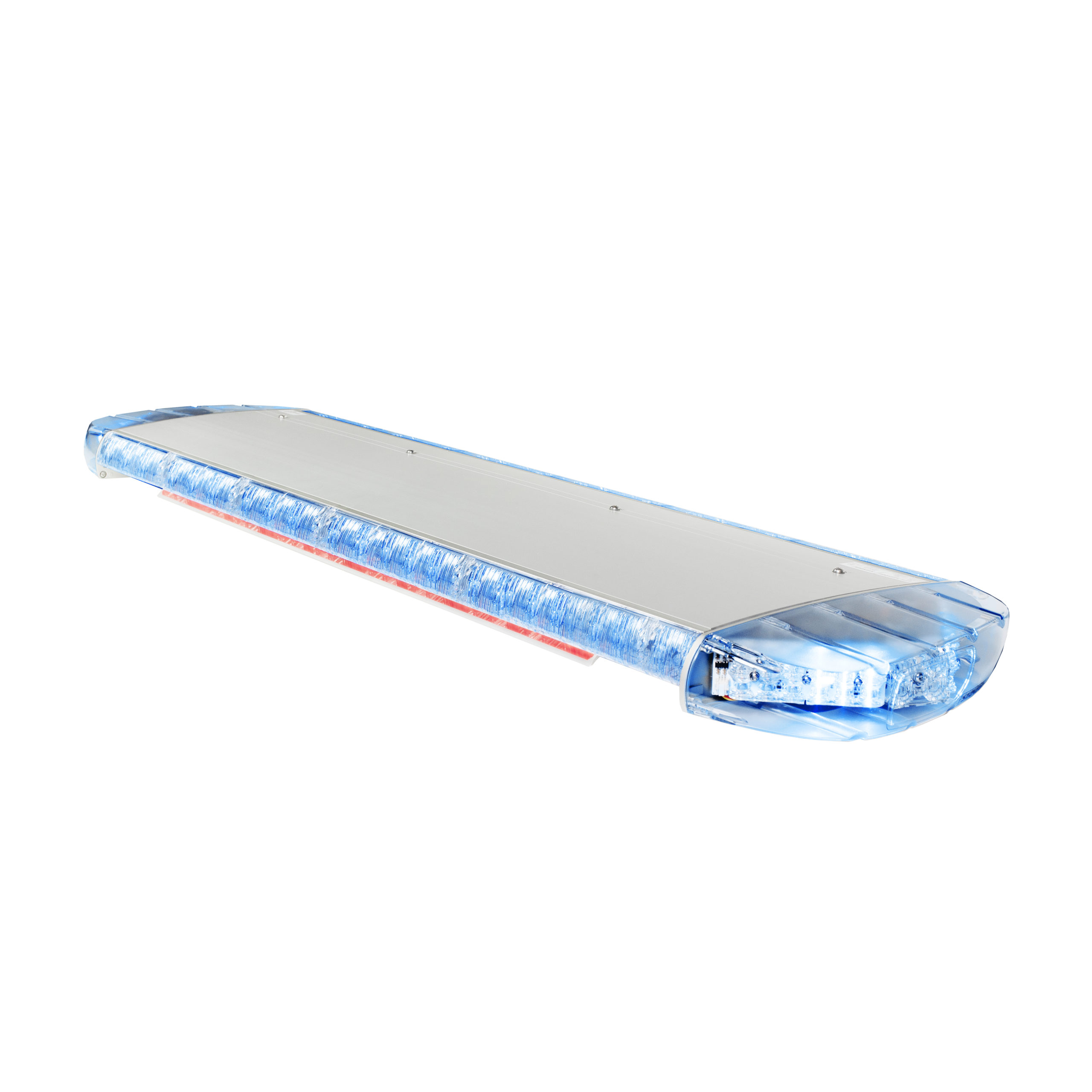

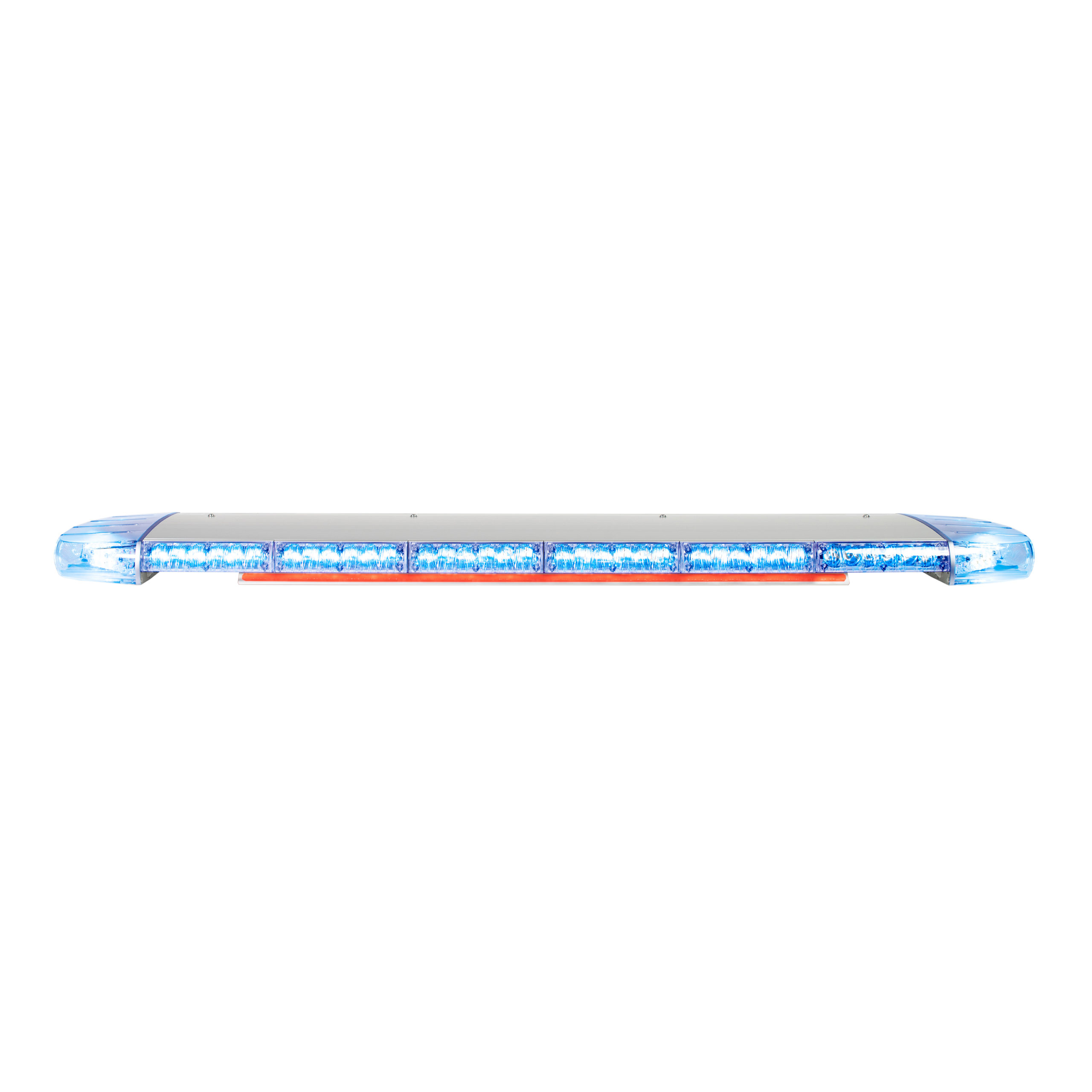

W3 lightbar
High brightness low-profile lightbar
Article number: 33579
- Aerodynamic design that provides minimal air resistance and low noise levels for the driver
- Built with high intensity light diodes

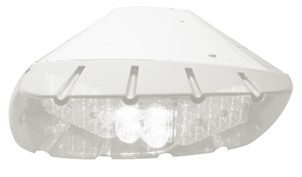

- Side work light is standard
- Front/rear work lights are available as an option
- Features such as position lights, indicators and traffic indicators
- Day/night location and cruise-light
- Easy to service
- Developed in Sweden: resistant to the extreme climatic conditions of the Scandinavian countries
-LED colors:
MONOCOLOR: Blue, amber, white, red, green
DUAL COLOR: blue/amber, blue/red, blue/white, amber/white
-Lightbar control with pack CCS-CAN Mercura (CAN interface ) or wired control (ref: 33258)

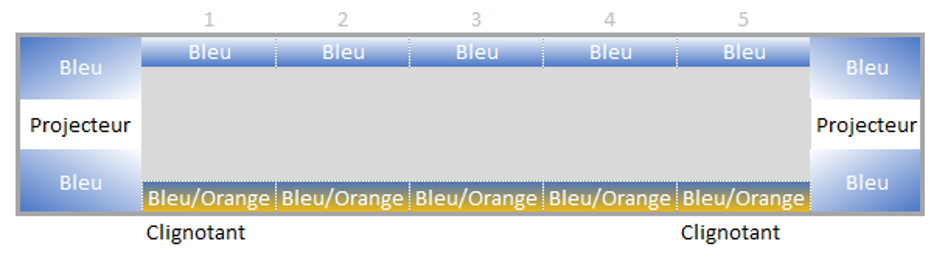

The model presented above is the 110 cm version.
| length | corners | alley lights | front lights | rear lights | functions | code |
| 110 cm | blue | yes | 5 x blue | 5 x dual color blue/amber | scrolling right left warning + traffic light indicators | 33579 |
| 127 cm | blue | yes | 6 x blue | 6 x dual color blue/amber | scrolling right left warning + traffic light indicators | CU |

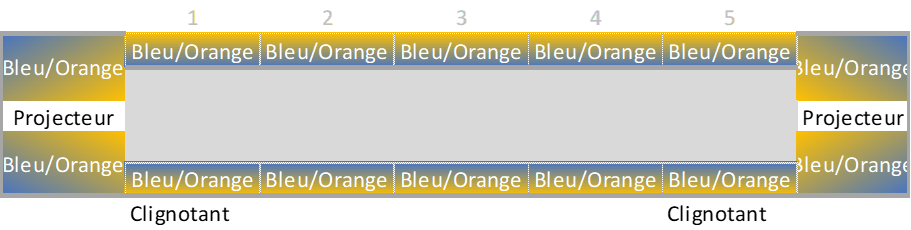

The model presented above is the 110 cm version.
| length | corners | alley lights | front lights | rear lights | functions | code |
| 110 cm | blue / amber | yes | 5 x dual color blue/amber | 5 x dual color blue/amber | scrolling right left warning + traffic light indicators | 33474 |
| 127 cm | blue | yes | 6 x dual color blue/amber | 6 x dual color blue/amber | scrolling right left warning + traffic light indicators | CU |
OPTIONS:
| Standard fixing system | 26154 |
| Interface BUS-CAN / wired | 33258 |
| pack CCS for W3 lightbar (emergency vehicle) | 26263 |
| Control box according to your emergency vehicles | consult us |
Lens
Polycarbonate
Colour LEDs
Blue, Amber, White, Red, Green
Colour lens
clear
No. of LEDs
Nombre de LED par module :
-corners : 2 x 12 LED
-front and rear : 6LED / module
-alley lights : 4 LED
Flash Patterns
Flash or rotating
Cable
4,5m
Voltage
10-30V
Dimensions
Length : 59, 93, 110, 127, 144, 160, 177 et 194 cm
height : 6,5cm (corner) / 4,7cm (lightbar)
width : 28cm
Interface
Can-Bus
Luminous flow
White inner module: 858 lm (measured)
Approval
ECE R65 I, ECE R65 II, ECE R10, ICAO Annex 14, ECE R6
Origin of product
Europe
Guaranty
4 years
