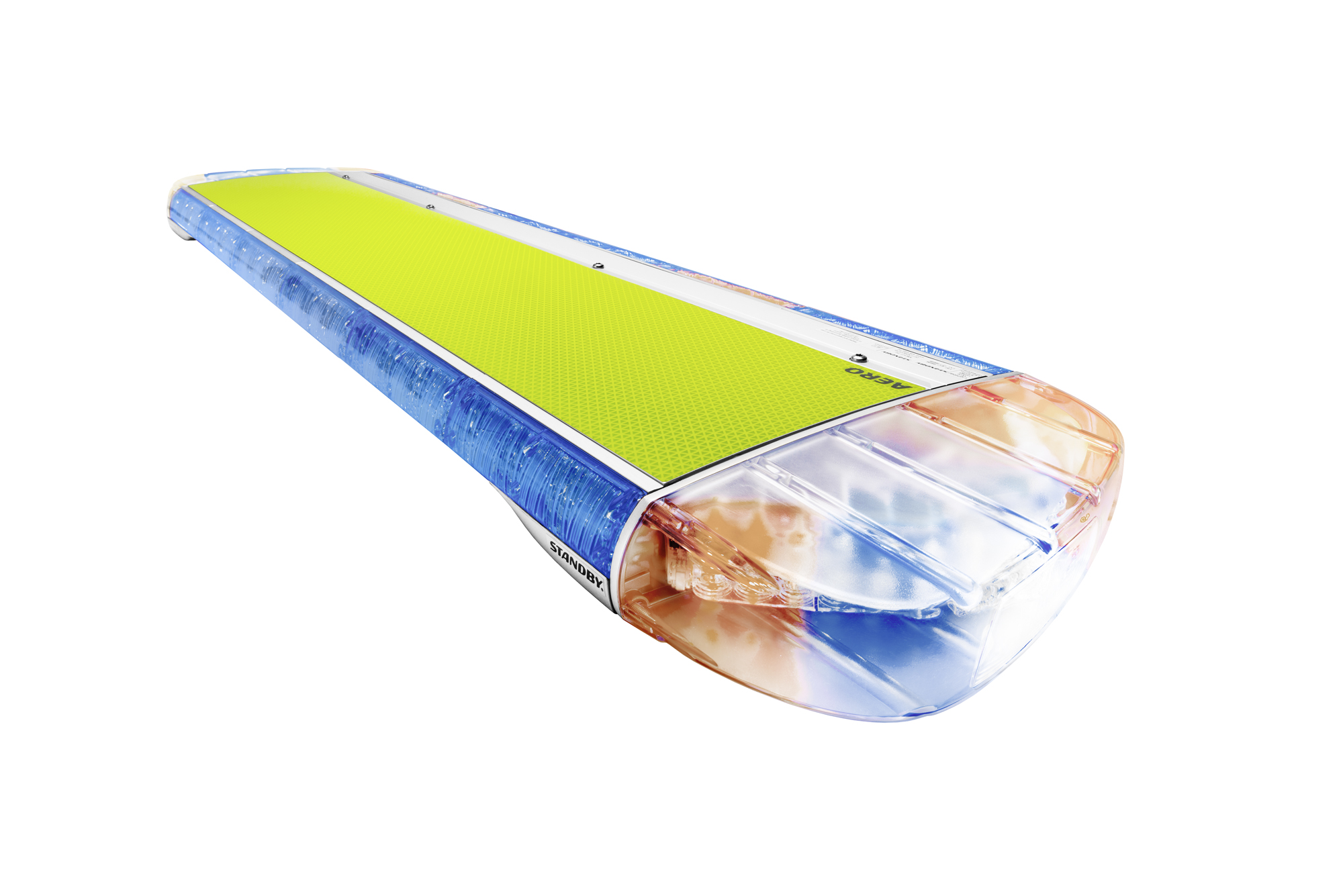

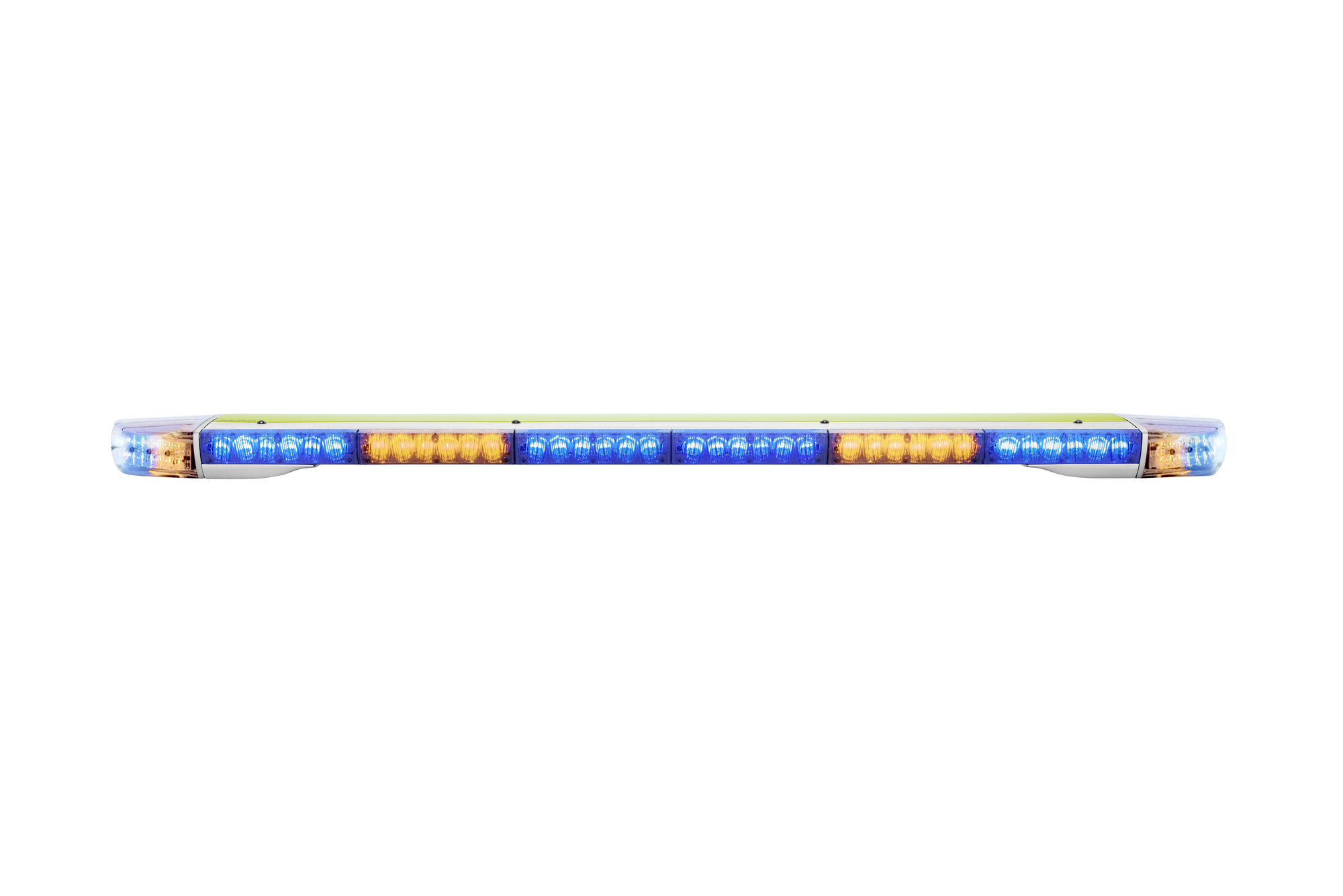

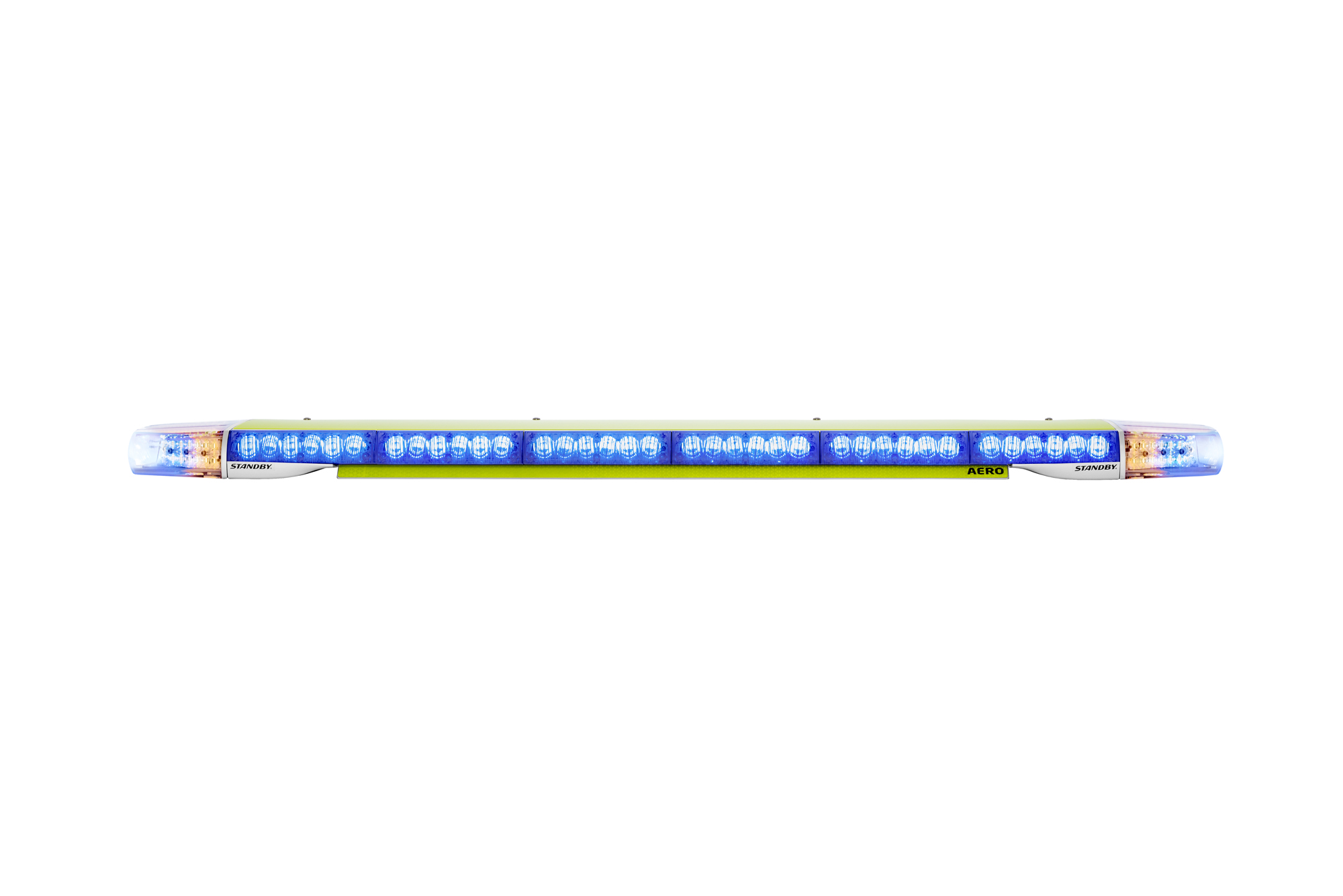

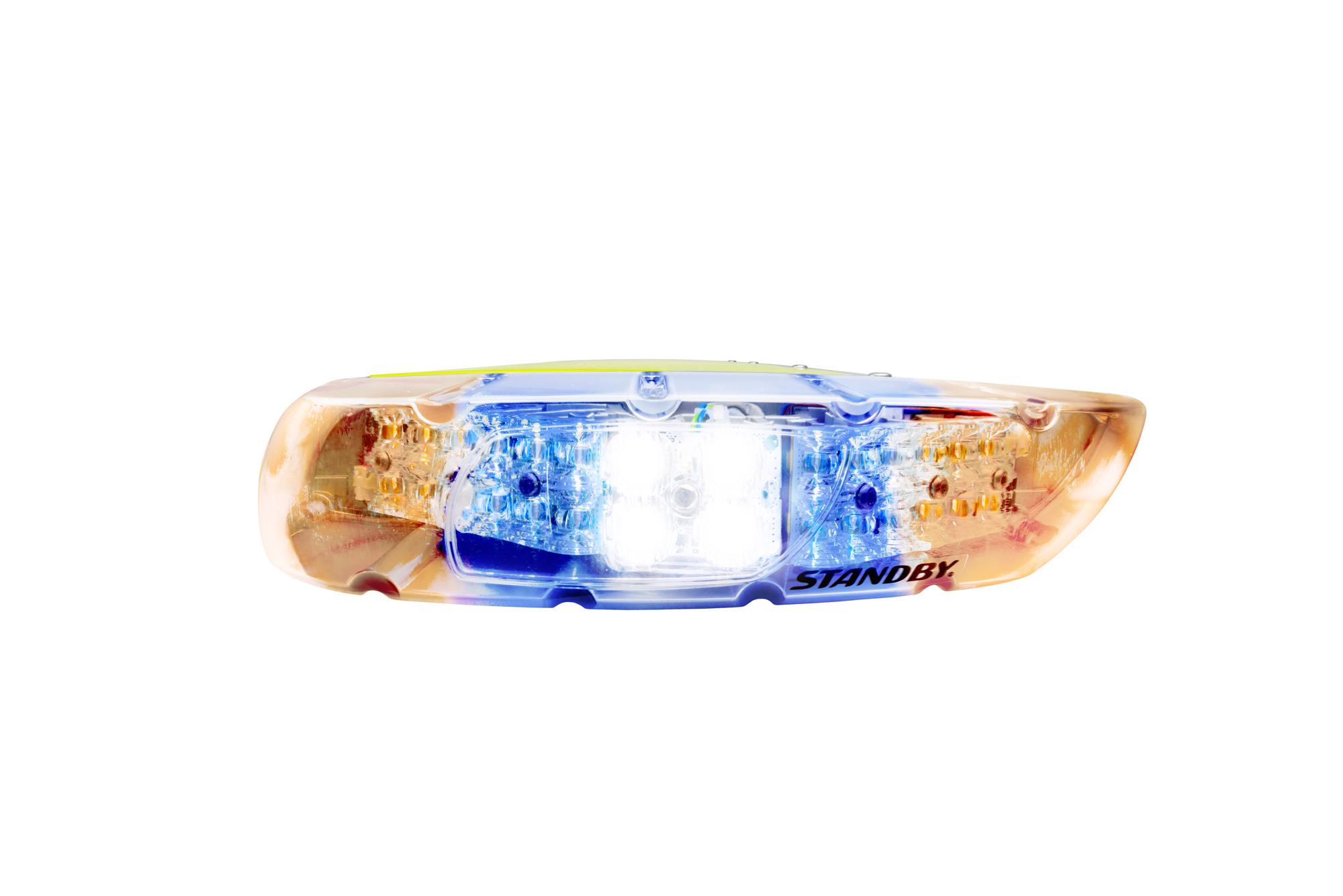

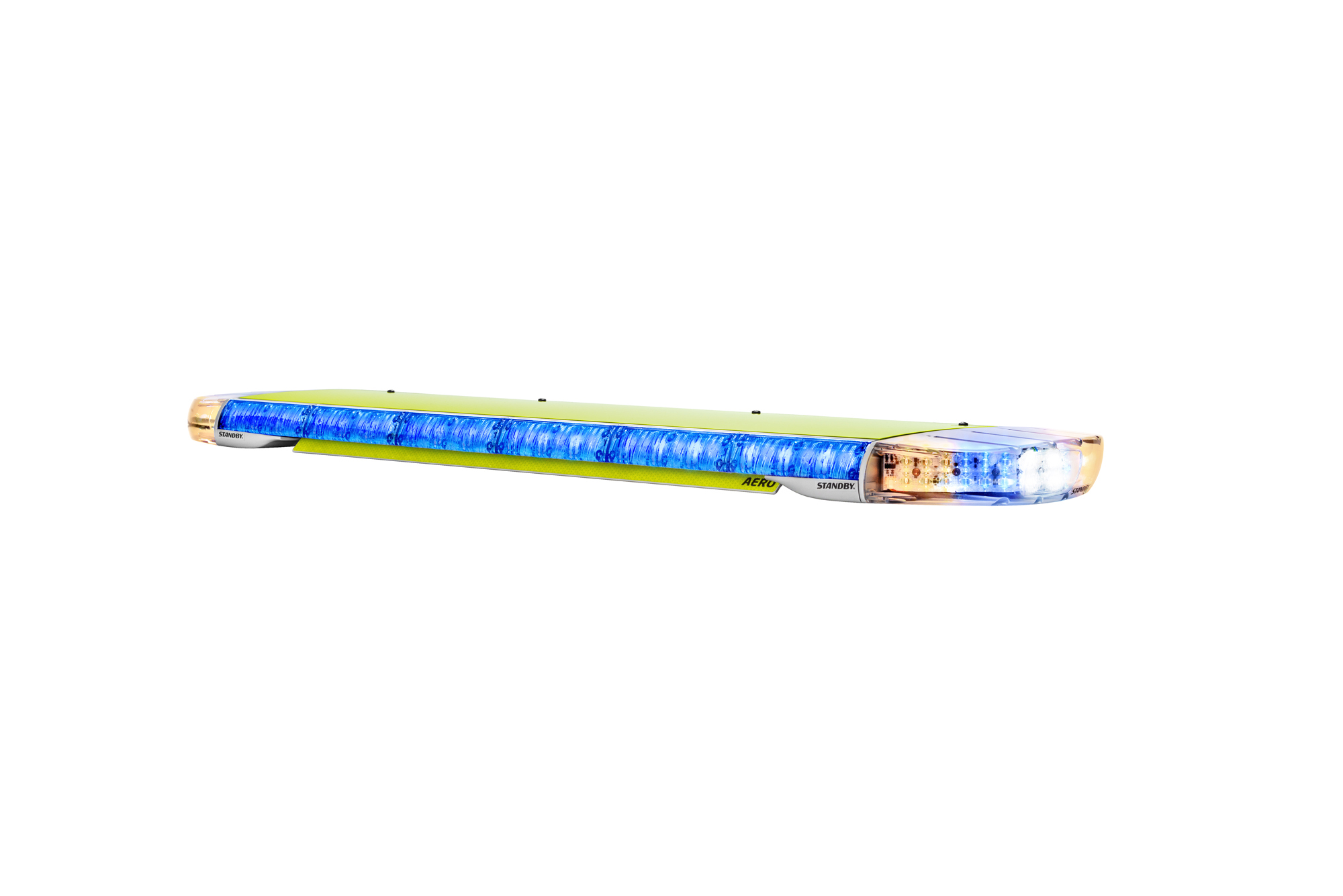

W2c Aero
With extreme light output for use at the airports and on the road
Article number: 31443
With extreme light output for use at the airports and on the road
Advantages:
- Modern aerodynamic design
- Aerodynamically neutral for better vehicle handling at high speeds
- Ultra-low wind resistance gives lower fuel consumption and noise level
- Unchanged driving performance of the vehicle thanks to the aerodynamic design
- Alley lights are standard
- Work lights/Take Down optional
- Lightbars are built with high bin, super bright LEDs for powerful output and consistant color
- Prepared for use in Stand Alone Mode or as a part of a Mercura CAN Bus Control System with CAN interface.
- Switchable between airport light mode (ICAO) and road mode ECE R65
- Adjustable light output for day, night and cruise function
- Meets the automotive industry’s climate requirements
- French design and quality
Approvals:
Light
- acc to ICAO annex 14
- ECE R 65 class 2 (Blue Class 2, Amber Class 1)
Electricals (EMC)
- acc to 72/245/ EEC with last amendment 2009/19/EC
Design Protection
- RCD 001715699-0001
Lens
Polycarbonate
Colour LEDs
Blue, Amber
Colour lens
Crystal
Cable
4,5m
Voltage
10-30V
Consumption
15 A with peak at 30 A for less then 50ms.
Length
930, 1100, 1270, 1440, 1600, 1770 & 1940 mm
Height
65 mm (corner modules)
47 mm (inboard modules)
Depth
280 mm
Approval
ECE R65 II, EMC, ICAO Annex 14
