Pack CCS 4 LS
Light and Sound
Article number: 28286
Light and Sound
Technical specifications:
– CAN communication ports of which one is used to connect the handy control panel microphone
- Input :
- Hand-brake
- Horn
- Crew manager pedal
- + After ignition or engine running (for the functions : Start-up / Automatic Standby mode)
- Output :
- 3.5A output (3 Gyroled®)
- Compatible with 4 Ohms or 8 Ohms loud-speakers
- Protection :
- Against reverse polarity
- Against high temperatures, automatic temperature control if internal temperature exceeds 95°C
- Open load detection on the loud-speaker output to guarantee that the siren is activated and in good working order
- Power module dimensions (L x H x W in mm): 140 x 33 x 64
- Weight 110 g
- The Information transmission Protocol between the control panel and the CCS power module meets vehicle CAN norms
- Vehicle wiring: CPT connector for the CAN BUS
- IP42, IK08
- Power Supply 10-30 V
- Operating temperature -40°C to + 85°C
Control box:
- 4 control keys
- 1 button On/Off
- 1 battery alarm indicator
- Pictograms of screen printed buttons adapted to equipment
The kit is made of:
- 1 control panel 4 buttons
- 1 x mounting to hold the control panel
- 1 BUS connector of 4.5 m
- 1 power module : This module has the following functions : Siren tone amplifier and 3.5A output
- Operating instructions

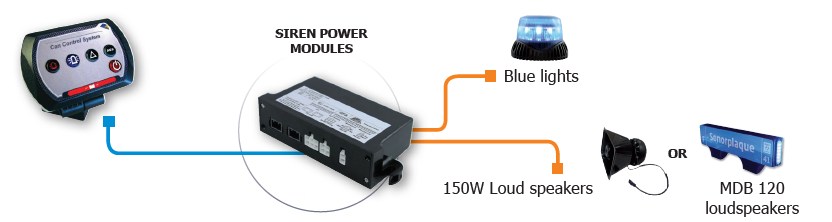

CCS4 LS technical diagram:
Pack available with US tone, with 150W Loud Speaker.
| Description |
Tone |
Loud Speaker |
#article |
| CCS 4 LS US |
Wail, Yelp, Hi-lo, Horn |
150W |
28869-00 |
US
Pack available with Police tones, with 30W or 150W Loud Speakers.
| Description |
Tone |
Loud Speaker |
#article |
| CCS 4 LS |
Police |
150 W |
29003 |
| CCS 4 LS |
Police |
30 W |
29361 |
Pack available without control panel but with switches on the dashboard:
| Description |
Tone |
For HP |
#article |
| CCS 4 LS control by switches |
To be indicated |
30W |
29829 |
| CCS 4 LS control by switches |
To be indicated |
150W |
29830 |
Voltage
10-30V
Consumption
When off : 200 µA : 12V
Operating 80 mA : 12V
Weight
110 g
Length
140 mm
Height
33 mm
Depth
64 mm
Inputs
Hand-brake
Horn
Crew manager pedal
+ Accessories or engine running (for the functions : Start-up / Automatic Standby mode)
Outputs
3.5A output (3 Gyroled®)
Compatible with 4 Ohms or 8 Ohms loud-speakers
Operating temperature
-40°C - + 85°C
Enclosure rating
IP42
IK08
