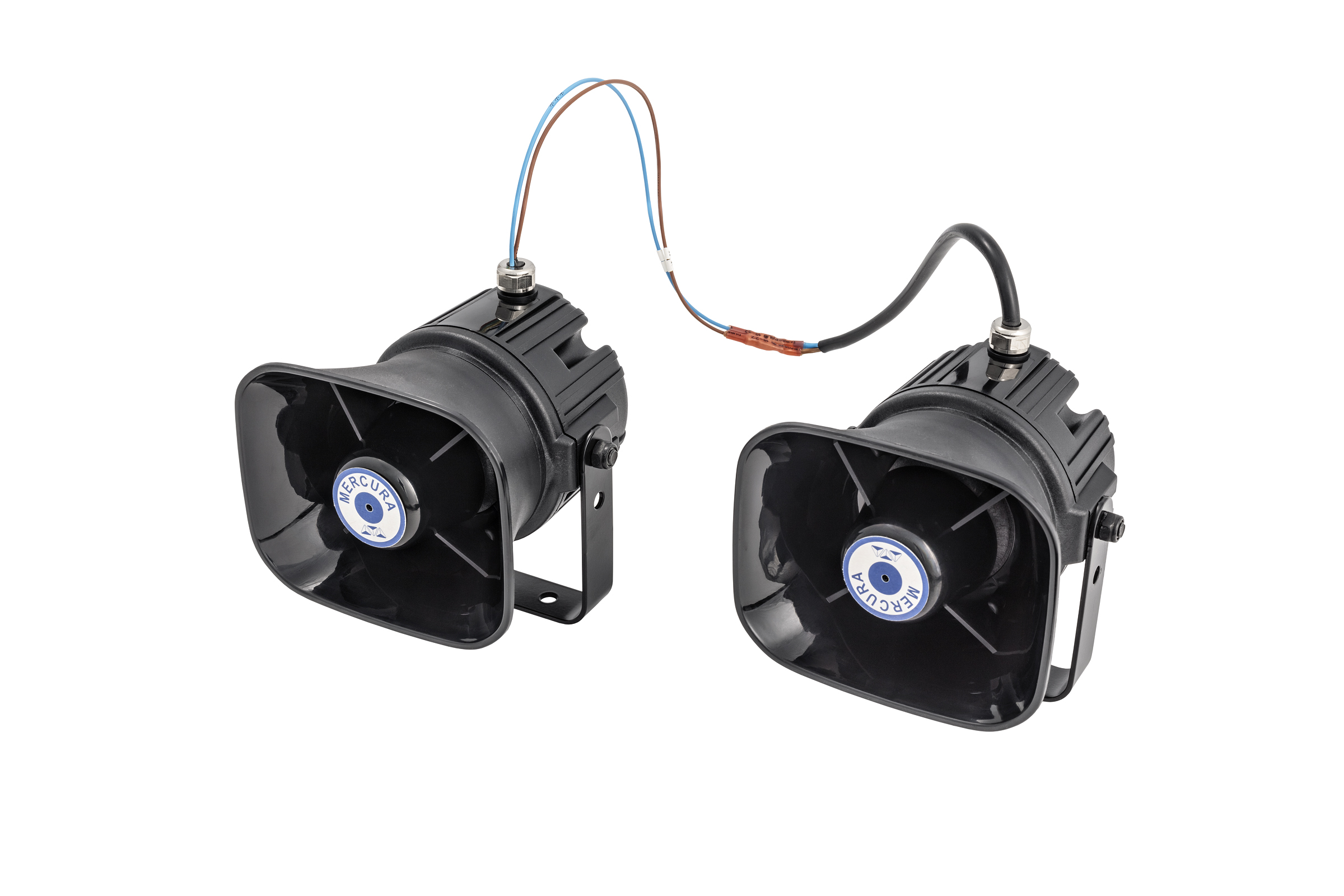

MP5 Multi-tone Duo Loudspeaker
All-in-one siren and loudspeaker solution!
Article number: 26904
All-in-one siren and loudspeaker solution!
Efficient, powerful, compact, easy to install in any motor compartment, even the most cluttered.
Technical specifications:
2 x 30W loudspeaker (4 ohms) with NEODYMIUM magnet : lighter and more powerful.
Siren output > 117 dB
Automatic day/night control
Fully encased module for protection against humidity
No consumption when not in operation
Automatic day/night control
Fully encased module for protection against humidity
No consumption when not in operation
Input voltage 12V or 24V (protected against polarity reversion)
Automotive standard cable harness (self-extinguishing)
Protection rating: IP66 and IK08
Operating temperature: -20°C to +85°C
Dimensions: (L x H x W) in mm : 222 x 93 x 101
Material: Black ABS
Automotive standard cable harness (self-extinguishing)
Protection rating: IP66 and IK08
Operating temperature: -20°C to +85°C
Dimensions: (L x H x W) in mm : 222 x 93 x 101
Material: Black ABS
Siren & loudspeaker in black color
Consumption: 3.7 A at 13.5 V
Weight: 1.3 kg
Tones available:
 |
Wail, Yelp, Hi-Lo, Horn |
 |
Land, Stadt, US Yelp (DIN14610) |
 |
Belgian tone (NBN-549) |
 |
Politie |
 |
Swiss tones (Annexe 11 sc 3 –ord 19/06/1995) |
 |
Ambulanza, Vigili del Fuoco |
 |
Feuerwehr, Rettung, Polizei |
 |
Ambulance, Police, Gendarmerie, Fire Brigade, Rapid Intervention Vehicle |
Approvals :
EMC : N° e2*03*12111 / E2*10R04*12111
RoHS compliance
Voltage
10-30V
Consumption
3.7 A : 13,5 V
Weight
1.3 kg
Length
222 mm
Height
93 mm
Width
101 mm
Operating temperature
-20°C - +85°C
Enclosure rating
IP 66
IK 08
