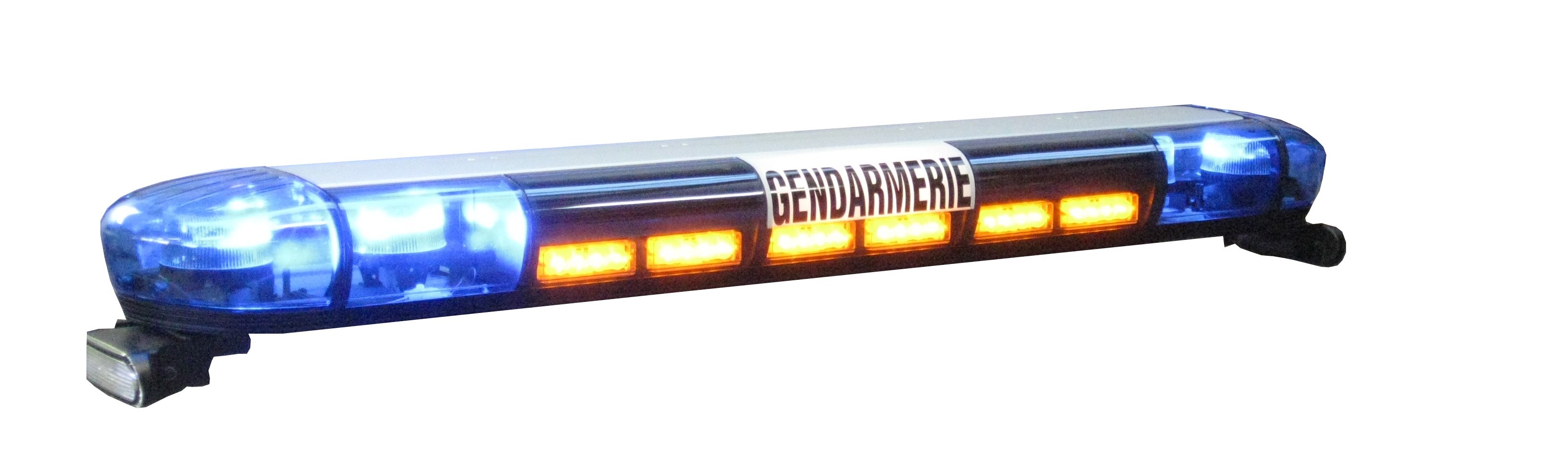

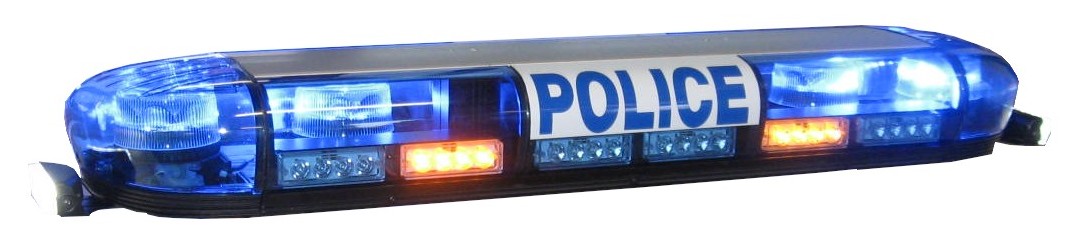

MLX4 Priority Light-Bar

Our "M" lightbars are noted for their aerodynamic shape and their resistance to impacts !

Article number: 20078

Our “M” lightbars are noted for their aerodynamic shape and their resistance to impacts !

Technical specifications :

Length : 1.10m or 1.50m – 12V/24V

Lightbar available with siren, loudspeaker, public address and amber rear traffic director light

Text (to be specified)
100 W Siren in white central part (Tone to be specified, click here to see the different tones available)

4 Blue Rotating Synchronised Gyroled – 2 at each ends and 2 on the inferior part of the lightbar

Rear Traffic Director Light by 6 amber LED Light (Width : 123 mm, Height : 35 mm, 6 LED per light)

(Right-Left Scrolling, Warning = full bar)

Wiring Loom with roof connector

Angled connector – 10m vehicle cable harness with fixed base by locknut

Matt Black Mounting

2 alley LED lights (Projoled)

Approvals :

  • Class 1 approved TB1 (E2) 0012033
  • Class 2 approved TB2 (E2) 0012198
  • Gyroled approved by R65 N° B1 E2 00011

For the PA lightbars :

Control by DIN Audio PA

Public Address

Metal Microphone with a potentiometer built into it

Control of integrated grill lights

Powering output for the radio



MLx4

Length Loudspeaker Siren PA Roof connector Beacons Lights Other #Article Class 1 #Article Class 2
1,50 m yes yes yes yes Scrolling Alley 12 keys 20079 25090
1,10 m – – – yes Warning – – 26545 CU
1,10 m – – – yes Warning Alley – CU 25753
1,10 m yes yes – yes Warning – – 23117 23714
1,10 m yes yes – yes Warning Alley – 24313 24371
1,10 m yes yes yes yes Scrolling Alley 12 keys 26925 24240
1,50 m – – – yes Warning Alley – CU 23713
1,50 m – – – yes Warning – – 24681 24675

Our "M" lightbars are noted for their aerodynamic shape and their resistance to impacts !

Technical specifications :

Length : 1.10m or 1.50m - 12V/24V
Lightbar available with siren, loudspeaker, public address and amber rear traffic director light
Text (to be specified)

Our “M” lightbars are noted for their aerodynamic shape and their resistance to impacts !

Technical specifications :

Length : 1.10m or 1.50m – 12V/24V

Lightbar available with siren, loudspeaker, public address and amber rear traffic director light

Text (to be specified)
100 W Siren in white central part (Tone to be specified, click here to see the different tones available)

4 Blue Rotating Synchronised Gyroled – 2 at each ends and 2 on the inferior part of the lightbar

Rear Traffic Director Light by 6 amber LED Light (Width : 123 mm, Height : 35 mm, 6 LED per light)

(Right-Left Scrolling, Warning = full bar)

Wiring Loom with roof connector

Angled connector – 10m vehicle cable harness with fixed base by locknut

Matt Black Mounting

2 alley LED lights (Projoled)

Approvals :

  • Class 1 approved TB1 (E2) 0012033
  • Class 2 approved TB2 (E2) 0012198
  • Gyroled approved by R65 N° B1 E2 00011

For the PA lightbars :

Control by DIN Audio PA

Public Address

Metal Microphone with a potentiometer built into it

Control of integrated grill lights

Powering output for the radio



MLx4

Length Loudspeaker Siren PA Roof connector Beacons Lights Other #Article Class 1 #Article Class 2
1,50 m yes yes yes yes Scrolling Alley 12 keys 20079 25090
1,10 m – – – yes Warning – – 26545 CU
1,10 m – – – yes Warning Alley – CU 25753
1,10 m yes yes – yes Warning – – 23117 23714
1,10 m yes yes – yes Warning Alley – 24313 24371
1,10 m yes yes yes yes Scrolling Alley 12 keys 26925 24240
1,50 m – – – yes Warning Alley – CU 23713
1,50 m – – – yes Warning – – 24681 24675
Collapse

Lens

Polycarbonate

Colour LEDs

Blue, White

Colour lens

Blue

No. of LEDs

4 Blue Rotating Synchronised Gyroled
2 at each ends and 2 on the inferior part of the lightbar

Voltage

10-30V

Length

1,10 m or 1,50m

Approval

ECE R65 I

Origin of product

Europe

Guaranty

3 years

Lightbar mountings

Read more
Video
Documentation
MLx4 lightbar product sheet
