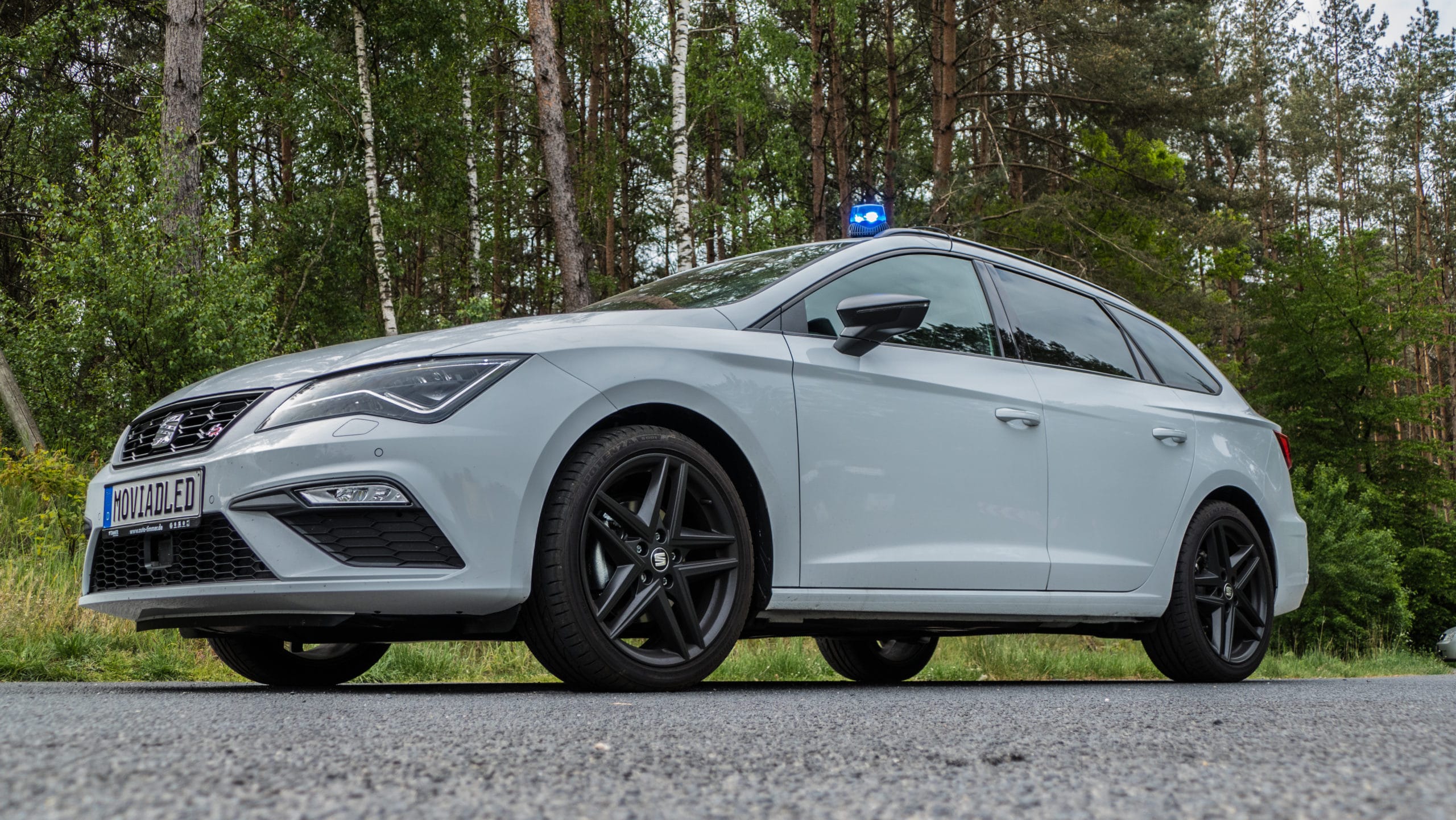

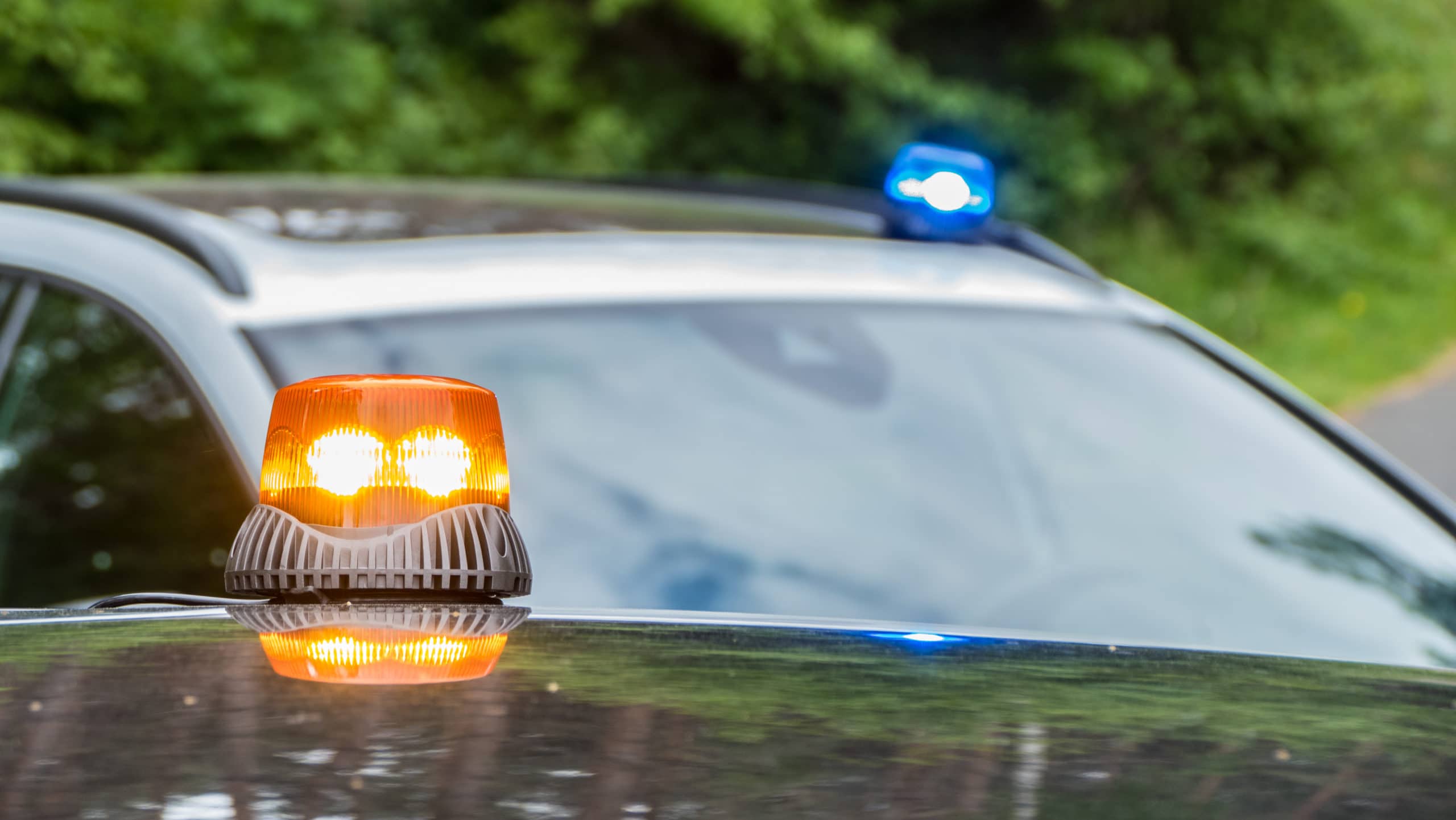

Gyroled M80 Class 1
13 flashing patterns, modifiable in few seconds!
Article number: 30576
Advantages:
- LED beacon, R65 and EMC approved
- Sold in batch – economical price
- Intended for first assembly
- Hight brightness R65 Class 1 approved
- 13 flash patterns available programmable by the user (by default, product delivered in rotating mode)
- Plastic base for better heat dissipation
Technical specifications
- 13 flash patterns
- Polycarbonate dome
- Power supply: 11 W maximum
- Protected against polarity reversals
Approvals
PHOTOMETRY : R65 Class 1 approval
PROTECTION RATINGS : Impermeability : IP45 – Protection from mechanical impacts : IK08
EMC : « E » Marking Regulation R10 N° E2 10R05 16242 CISPR25 (2008) : class 4 or 5 radiated
| Mounting | Code |

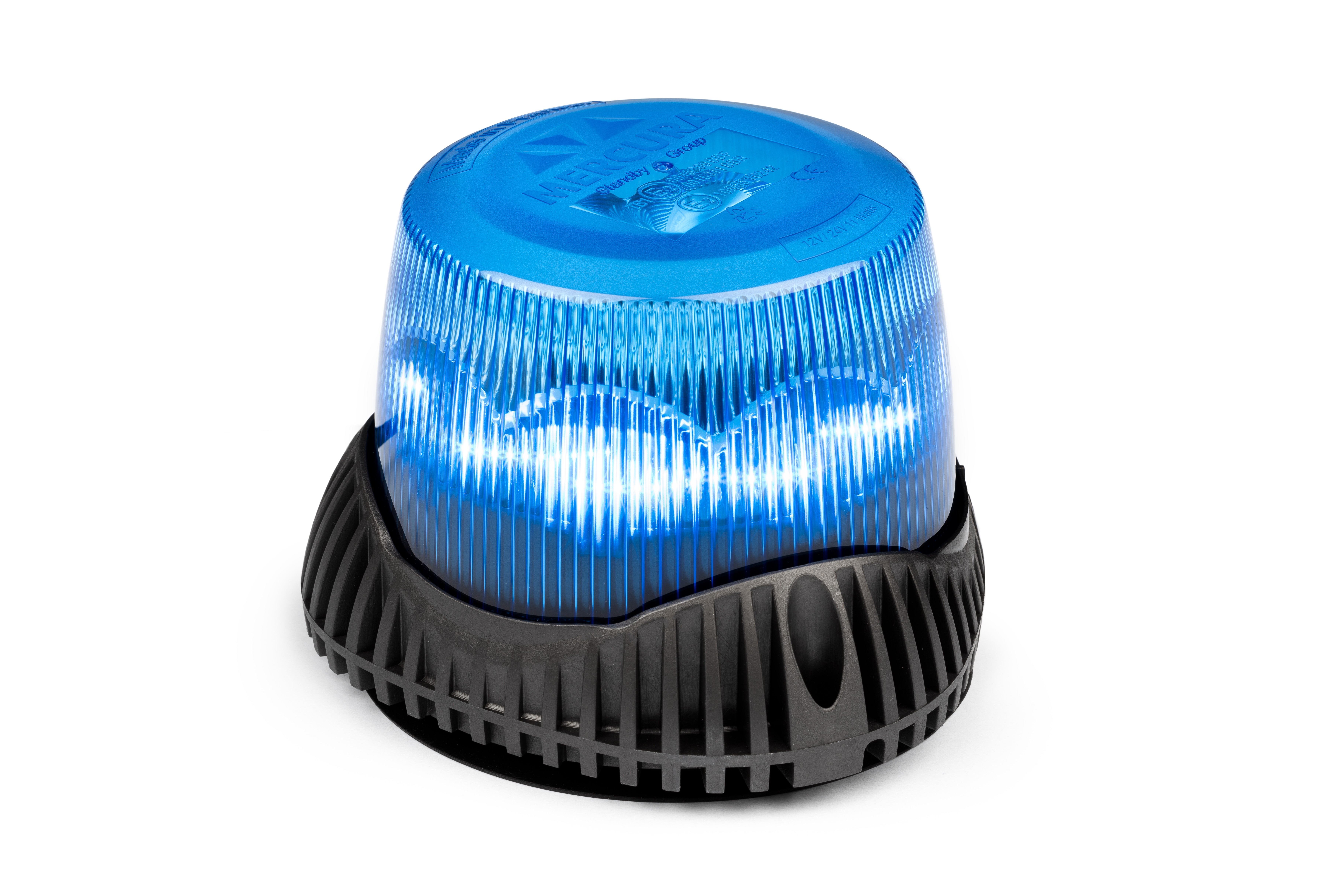

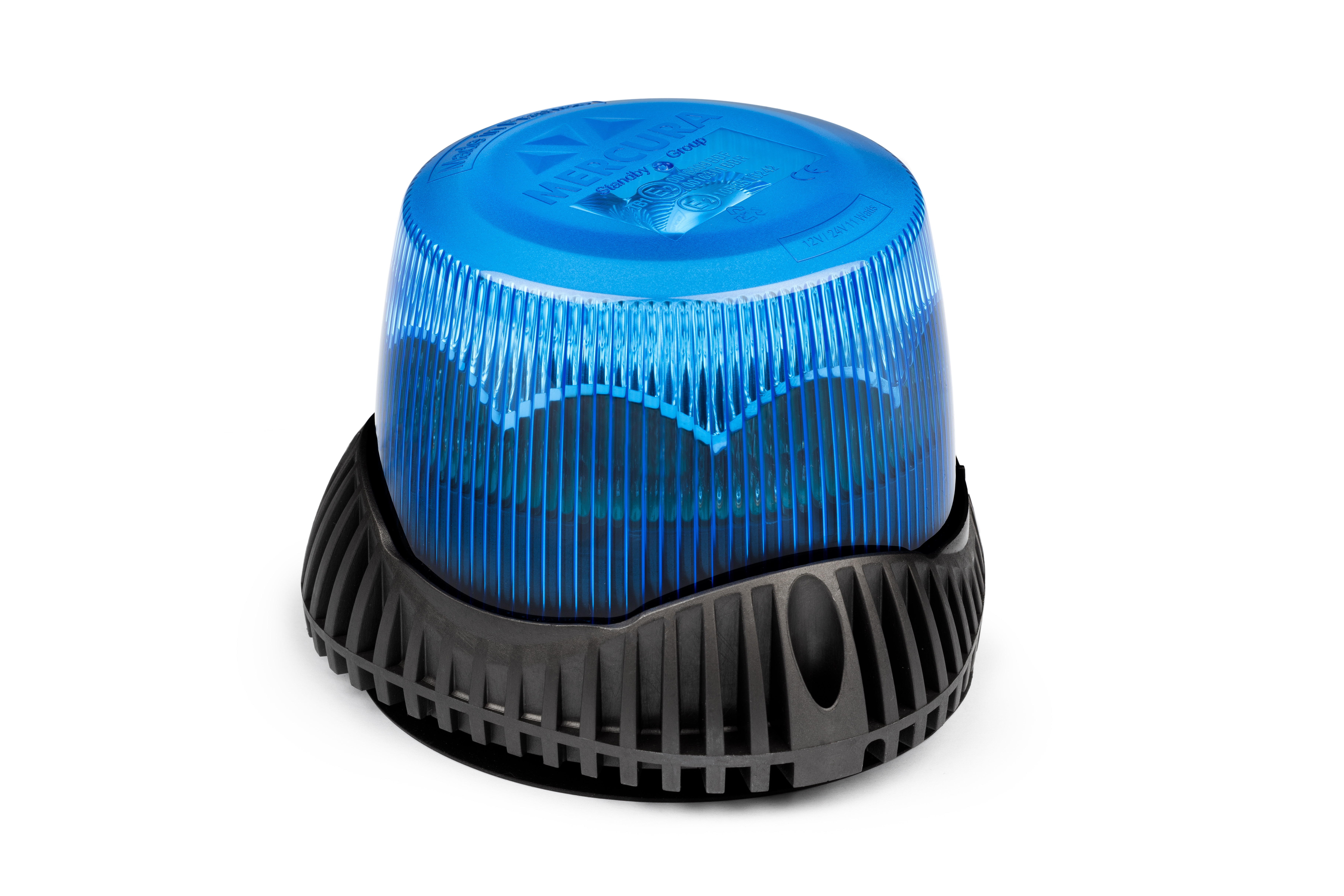

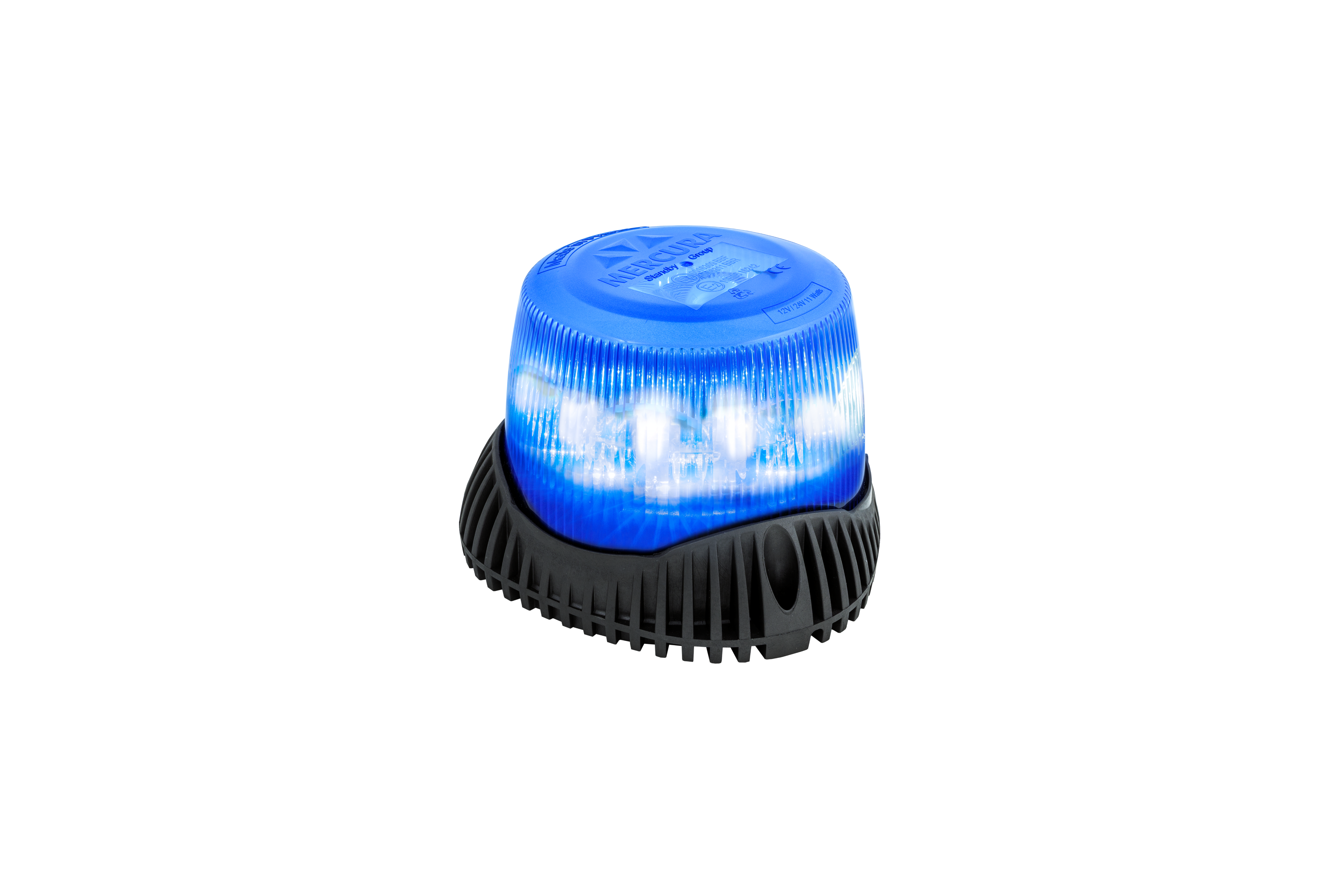

| ISO | 30576 |

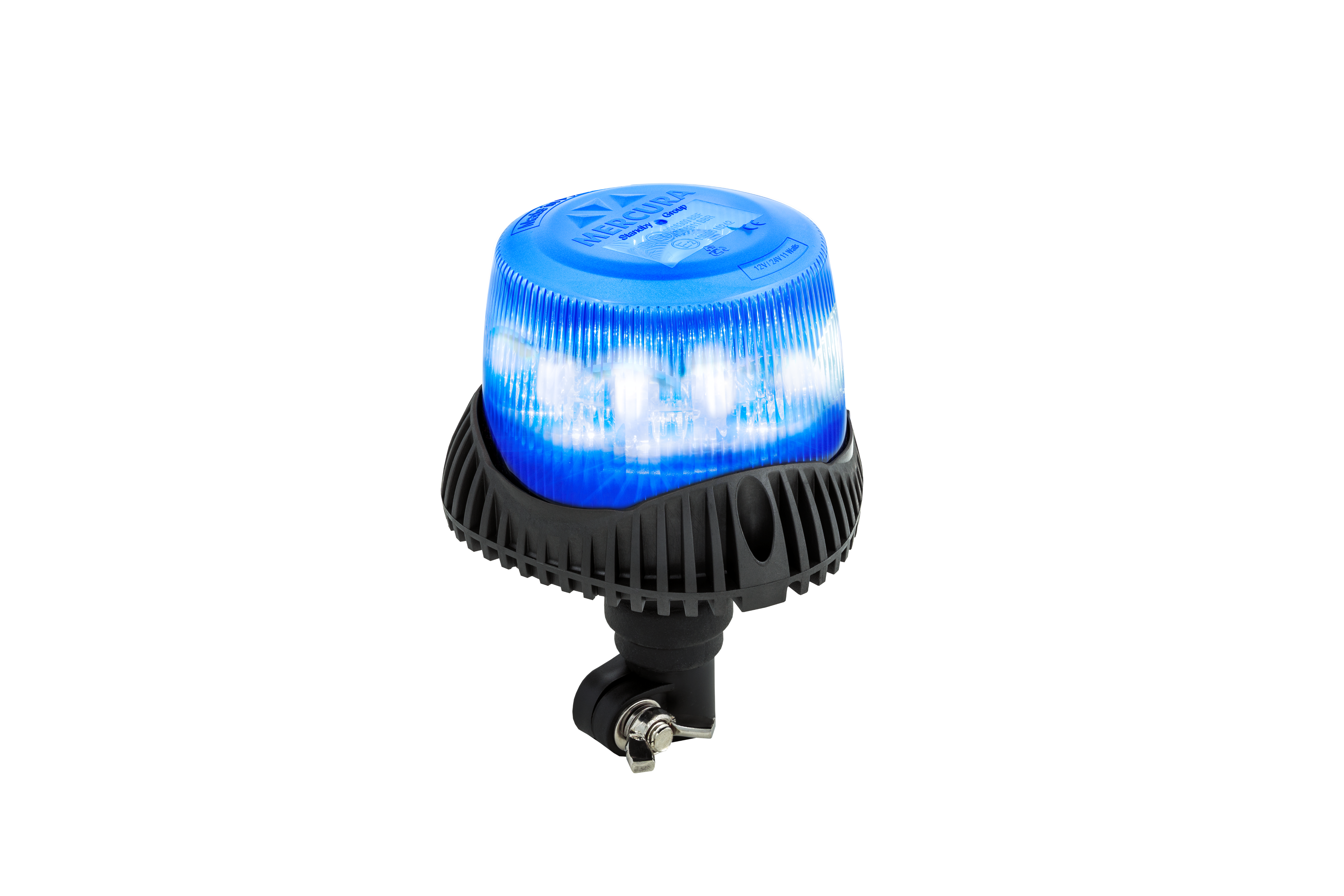

| PIPE-MOUNT | 30581 |

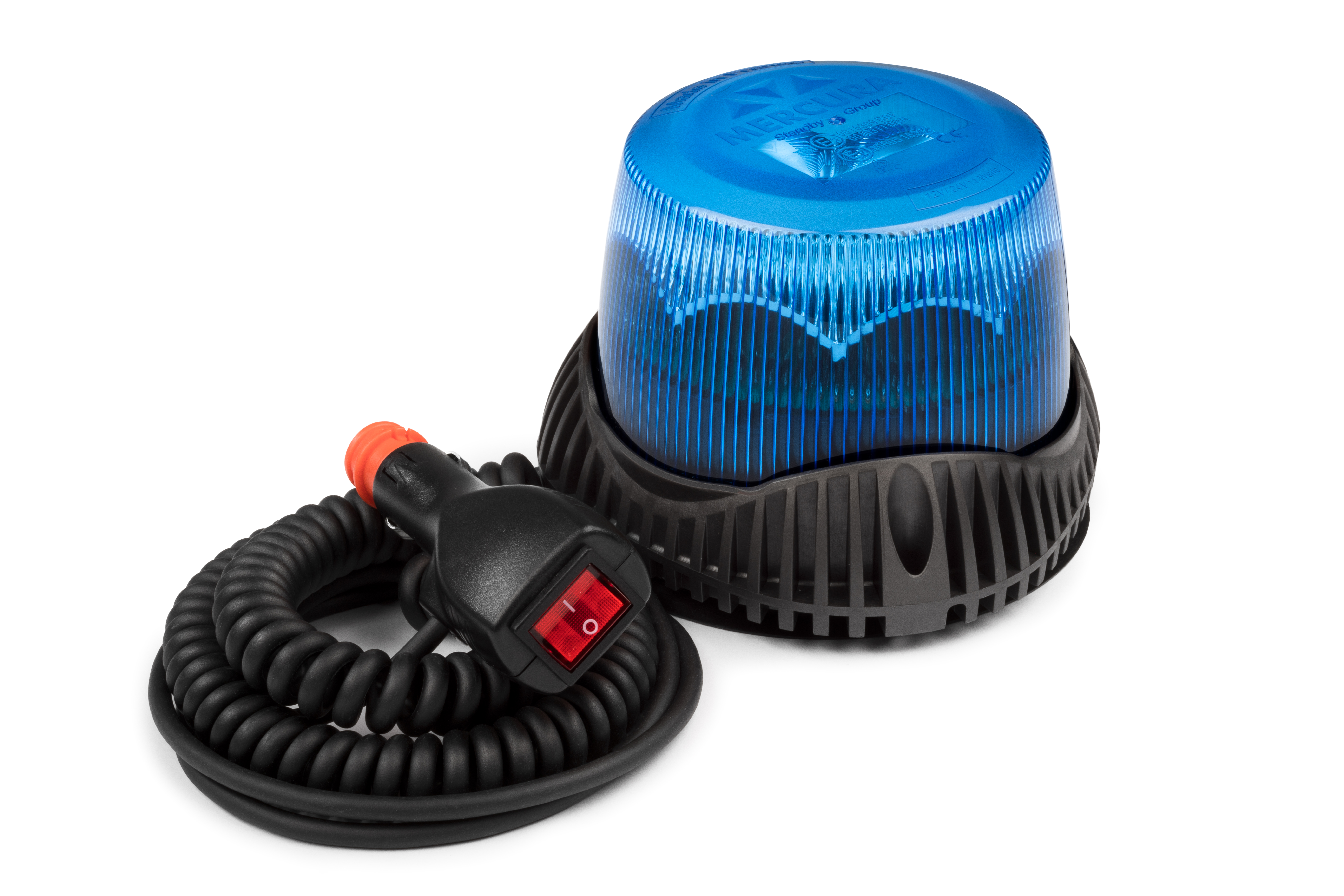

| Magnetic with cigare lighter plug | 31652 |
For more information, please consult the “documentation” tab below and find our product approvals here.
Lens
Polycarbonate
Colour LEDs
Blue
Colour lens
Blue
No. of LEDs
8
Flash Patterns
13 flash patterns
Mounting
Surface Mount, Pedestal, Magnetic, ISO-base
Voltage
10-30V
Diameter
ISO: 134 mm
PIPE MOUNT: 134 mm
MAGNETIC: 134 mm
Weight
ISO: 0.450 kg
PIPE MOUNT: 0.585 kg
MAGNETIC: 0.750 kg
Length
For the magnetic version: spiral cord, minimum length 50cm, maximum 3m
Height
ISO: 96 mm
PIPE MOUNT: 176 mm
MAGNETIC: 105 mm
Operating temperature
-40°C to +85°C
Enclosure rating
IP 45
IK 08
Approval
ECE R65 I, ECE R10
Origin of product
Europe
Guaranty
3 years
