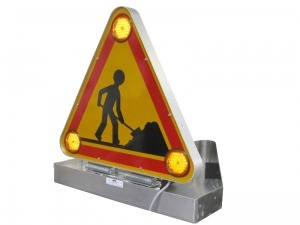

Triangle with Electric Raising System

Electric Raising increases the useful life of the triangle and makes it easy to use.
For slow-moving vehicles with service speeds of under 25km/h

Article number: 21460

Electric Raising increases the useful life  of the triangle and makes it easy to use.

For slow-moving vehicles with service speeds of under 25km/h

This option includes :

  • 1 x 500 OR 1 X 700 AK Triangle Class T1 (or T2) – 6 x Ø74 mm diameter LED lights of 12/24V
  • A corrosion-resistant aluminium casing to help protecting the triangle. It is delivered untreated or painted in your colours.
  • An electric cylinder, for bringing quickly the triangle into service, from the driver seat regardless wherever is his position on the vehicle.
  • The system includes a 4.5m cable harness, control switch and mounting.

Models available :

Triangle with Electric Raising System Screen print symbol Screen print class Untreated code

Amber

RAL 2000

White

RAL 9016

 To be specified
Triled 500 AK5 T1 21460 21446 21264 21244
Triled 500 AK5 T2 21164 21037 21142 21142
Triled 500 AK14 T1 CU* CU CU 20726
Triled 500 AK14 T2 23673 CU CU 20865
Triled 700  AK5 T1 21823 21180 20310 21344
Triled 700  AK5 T2 21165 21166 20568 21248
Triled 700 AK14 T1 NC NC NC NC
Triled 700 AK14 T2 23673 CU CU 21144



Electric Raising increases the useful life  of the triangle and makes it easy to use.

For slow-moving vehicles with service speeds of under 25km/h

This option includes :

  • 1 x 500 OR 1 X 700 AK Triangle Class T1 (or T2)... Read more

Electric Raising increases the useful life  of the triangle and makes it easy to use.

For slow-moving vehicles with service speeds of under 25km/h

This option includes :

  • 1 x 500 OR 1 X 700 AK Triangle Class T1 (or T2) – 6 x Ø74 mm diameter LED lights of 12/24V
  • A corrosion-resistant aluminium casing to help protecting the triangle. It is delivered untreated or painted in your colours.
  • An electric cylinder, for bringing quickly the triangle into service, from the driver seat regardless wherever is his position on the vehicle.
  • The system includes a 4.5m cable harness, control switch and mounting.

Models available :

Triangle with Electric Raising System Screen print symbol Screen print class Untreated code

Amber

RAL 2000

White

RAL 9016

 To be specified
Triled 500 AK5 T1 21460 21446 21264 21244
Triled 500 AK5 T2 21164 21037 21142 21142
Triled 500 AK14 T1 CU* CU CU 20726
Triled 500 AK14 T2 23673 CU CU 20865
Triled 700  AK5 T1 21823 21180 20310 21344
Triled 700  AK5 T2 21165 21166 20568 21248
Triled 700 AK14 T1 NC NC NC NC
Triled 700 AK14 T2 23673 CU CU 21144



Collapse

Colour LEDs

White

Colour lens

Amber

No. of LEDs

3 x 74mm amber led light - 964 candelas / light

Voltage

10-30V

Consumption

1.2A : 10/15V
360mA : 24V

Height

500mm or 700mm

Operating temperature

-30°C - +85°C

Includes

4.5m cable harness, control switch and mounting

Origin of product

Europe

Guaranty

3 years

Video
Documentation
Triangle with electric raising system - User Manual
