MTD Range
LED bar
Article number: 31106
Technical specifications :
- Number LED by light : 4
- Consumption by light : 3 W
- Classification according to NF EN 12352 :
- Mode KR1 : L2H, C1+C2, F2, O1
- Mode KR2 : L2L, C1+C2, F2, O3
- Black aluminum housing
- IP 65
- conform to KR41
- Voltage 12/24V
- Control with a CCS box – click here to discover the CCS4 with scrolling

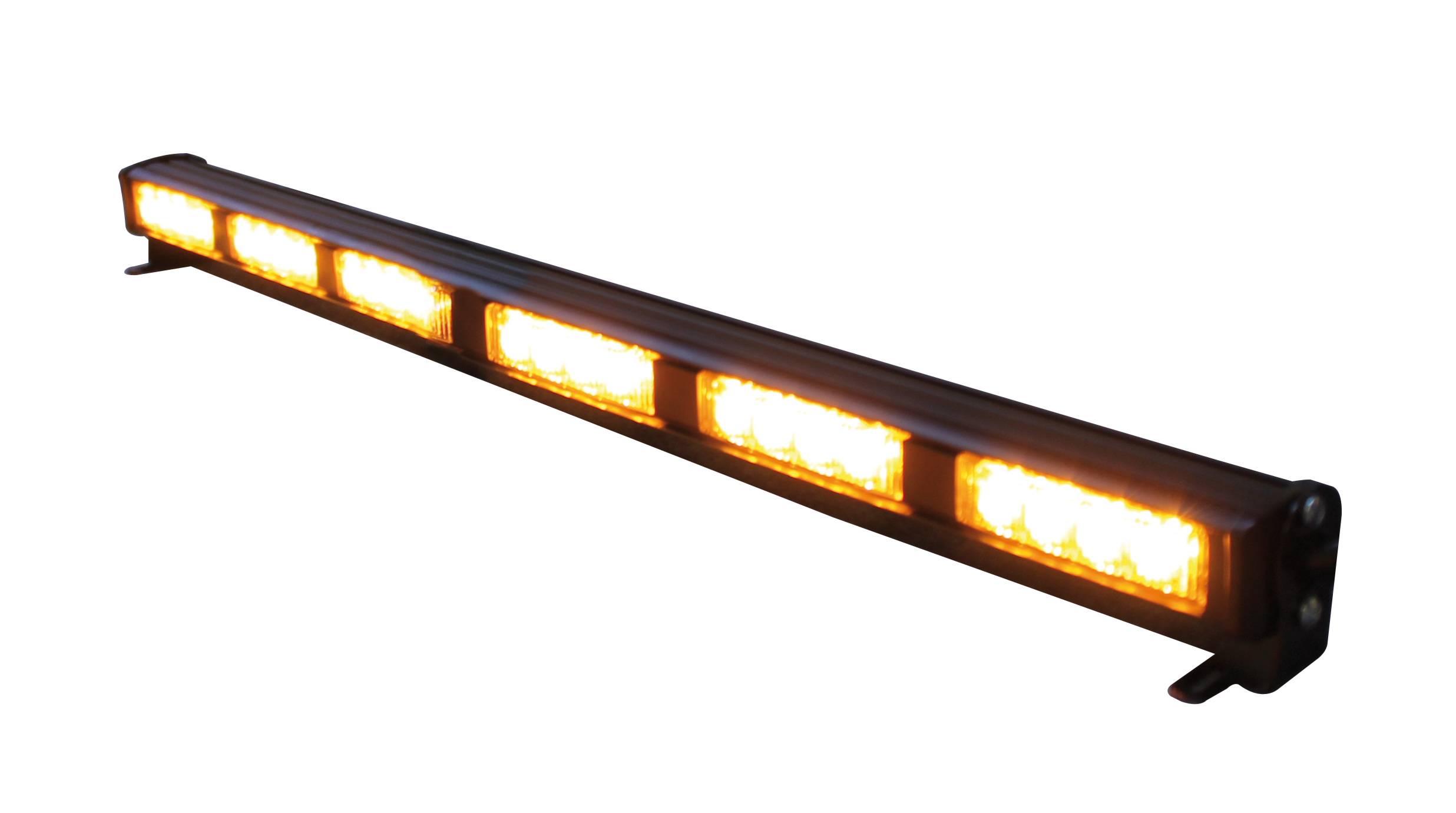

LED BAR MTD 68
- Dimensions with fixing (L x h x p) in mm : 685 x 47 x 37
- Number of light : 6
- Power : 19 W
| MTD 68 (685 mm) | Code |
| amber | 31106 |
| blue | 31657 |
| red | 31658 |
| green | 31659 |

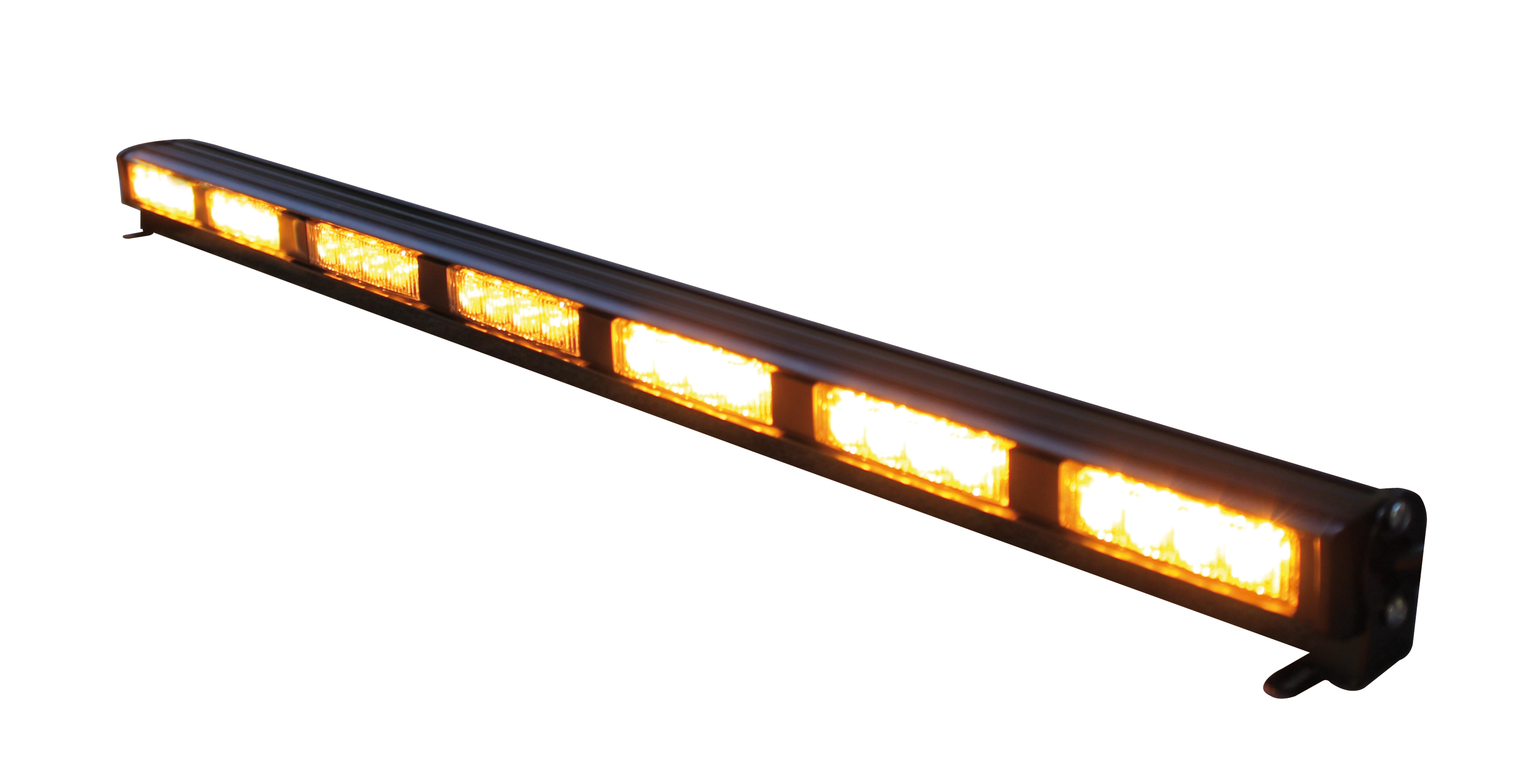

LED BAR MTD 80
- Dimensions with fixing (L x h x p) in mm : 800 x 47 x 37
- Number of light : 7
- Power : 22 W
| MTD 80 (800 mm) | Code |
| amber | 31107 |
| blue | 31660 |
| red | 31661 |
| green | 31662 |

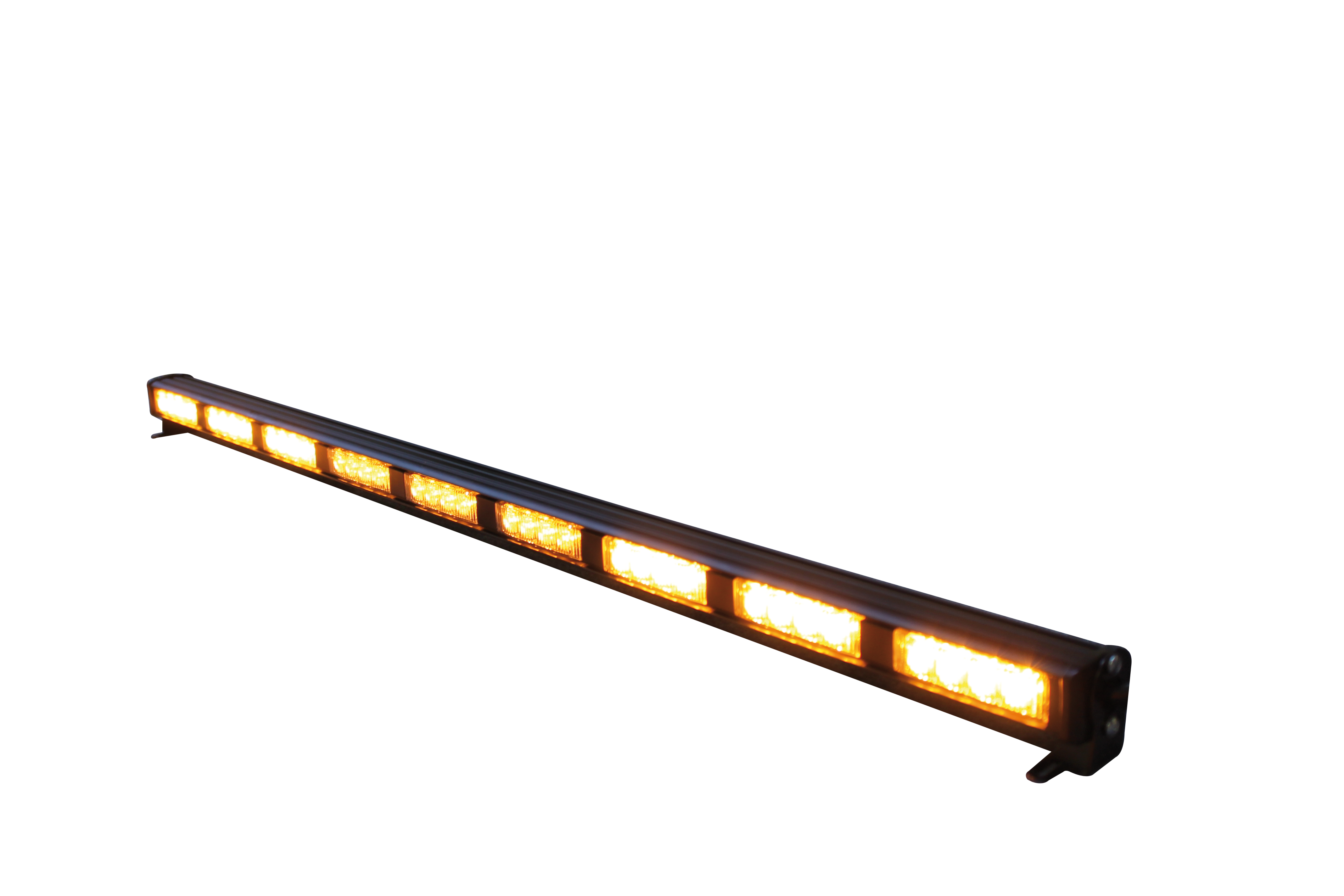

LED BAR MTD 103
- Dimensions with fixing (L x h x p) in mm : 1030 x 47 x 37
- Dimensions without fixing (L x h x p) en mm : 1020 x 47 x 37
- Number of light : 9
- Power : 28 W
- Weight : 2,5 kg
| MTD 103 (1030 mm) | Code |
| amber | 31108 |
| blue | 31663 |
| red | 31664 |
| green | 31665 |
Lens
Polycarbonate
Housing
black aluminium
Colour LEDs
White
Colour lens
Amber
blue
red
green
No. of LEDs
By light : 4
Voltage
10-30V
Length
MTD68 : 685mm
MTD80 : 800mm
MTD103 : 1030mm
Height
47mm
Depth
37mm
Enclosure rating
KR41
IP65
Kit CCS4
