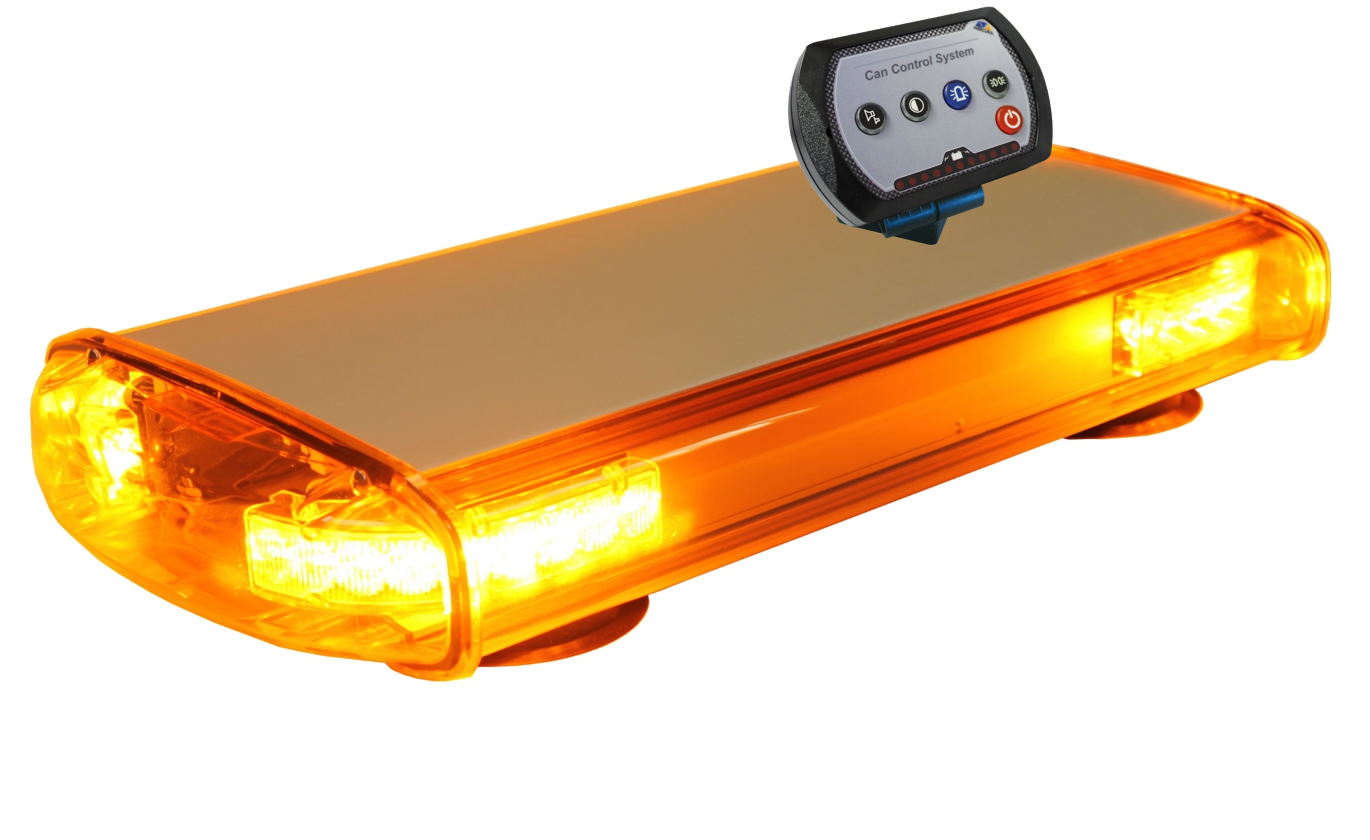

Mini VEGA amber with electronic control panel
Choose the control panel suitable for your MINI VEGA S lightbar
Article number: 30242
Choose a control panel suitable for your MINI VEGA S lightbar
Advantages:
- Mini lightbar with integrated siren and loudspeaker
- Light, easy and prompt to install
- 3 different mounting types available
- High brightness LED lighting – R65 approved
Product’s codes:
| CONTROL BY CCS CONTROL PANEL | Roof Connector | Control panel | Adhesive | Bolted |
 |
– |
not included (see table below) |
30242 * | 30243 * |
| Yes |
not included (see table below) |
30246 * | 30247 * |
*The control panel is mandatory and should be chosen from options listed in table below.
| 4-key CCS control panel | Code |
| for amber lightbar (service) | 30250 |
| CONTROL BY CONTROL PANEL WITH MICROPHONE AND PUBLIC ADDRESS | Roof Connector | Control panel | Adhesive | Bolted |
 |
Yes | Standard Handy | 30262 | 30263 |
For more information, please consult the “documentation” tab below and find our product approvals here.
Lens
Polycarbonate
Colour LEDs
Amber
Colour lens
Amber
No. of LEDs
4 x 9 LED modules
1 x 3 LED rear module (versions with siren)
2 x 3 LED modules (1 front + 1 rear) for versions without siren
Flash Patterns
Mode: R65 double flash
Voltage
10-30V
Length
53 cm
Height
6.7 cm
Width
26.7 cm
Approval
ECE R65 I, ECE R10
Includes
Supplied with 4 m cable and 2-button cigar lighter plug (magnetic model only)
