E-zy Topometer

An easy-to-use, efficient and ergonomic product

Intended for road network operators and public works companies, the E-zy topometer allows to accompany employees in their various missions while remaining safe in their vehicle.

Resulting from the collaboration with our partner KM SIME, the E-zy topometer allows employees to be supported in their various missions while remaining safe in their vehicle.

Many features are available :

• Odometer / Topometer
• Interval generator
• Traffic coning assistance
• Counting

Odometer / Topometer :

Metric counter with sub-metric accuracy that allows direct measurement of up to 20 distances and 19 inter-distances.

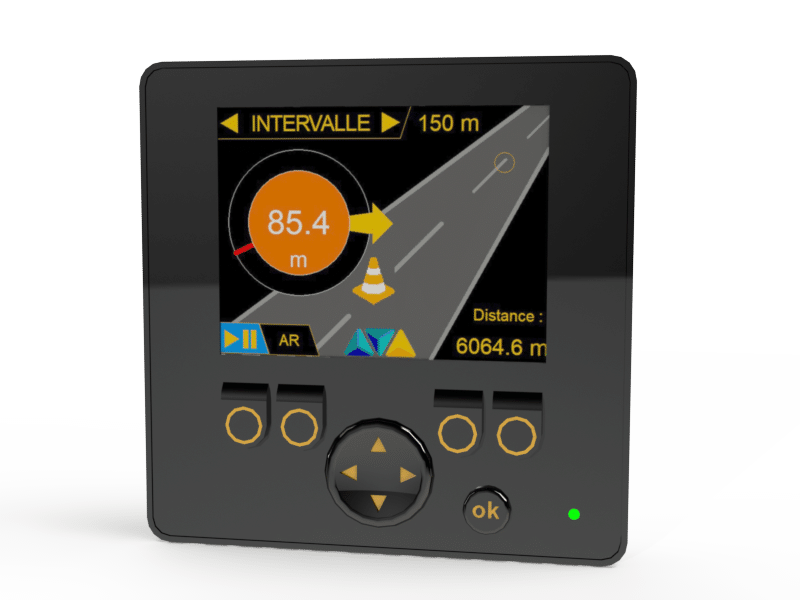

Interval generator :

Adjustable spacing in 10-meter increments to ensure proper spacing.  Cone installation intervals of 13 and 26 meters are also available.

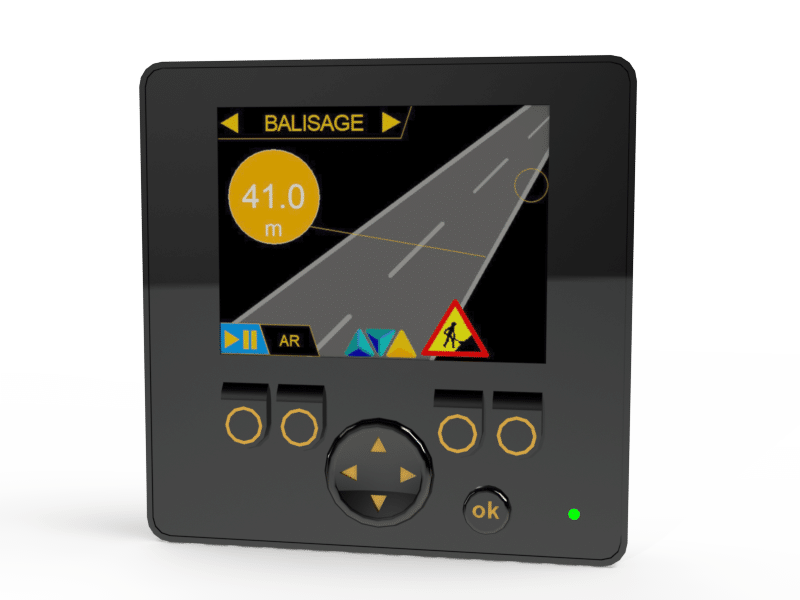

Traffic coning assistance :

Incorporates the most common markup diagrams from the site manager’s manual. Assists the agent in the installation of the worksite markings.

Counting :

Event counter providing also the distance traveled as well as the average and maximum inter-distances between events.

The strengths of the E-zy topometer :

• Installation in 2 minutes on OBD plug
• Use on different vehicles
• Different features, easy to use
• Safe communication with the CAN of the vehicle
• No stopping of the vehicles

	Mounting	Code
	E-zy Topometer with screw-in base	34998
	E-zy Topometer with suction cup base	34999

Accessory :

2 meters extension cord OBD-2 (code : 35451)

The technical characteristics :

• Accuracy: < 0.1% (error < 5m / 1000m)
• Certificates :
• Graphic color display 2.8’’
• 5 backlit keys + 1 navigation button Power
• supply: 8V to 32V
• Standard: ISO15765 | SAE J1962 | SAE J2284
